51 16 202 Removing and installing/replacing front cupholder

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER CONSOLE COVER

Release screws (4).

Feed out front can holder (1) from the center console cover (3) toward the back and take it off.

Installation note:

Make sure wiring harness (2) is correctly installed.

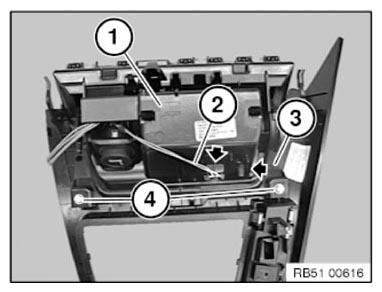

Fig 1: Identifying Front Can Holder, Center Console Cover, Wiring Harness, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed retaining tabs (3) of can holder (2) correctly into the securing eye in front of the center console cover (1).

Replacement

Feed out wiring harness (2) including lighting element.
Modify 12 V charging socket
Modify the DECORATIVE TRIM

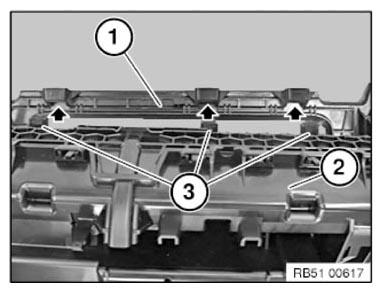

Fig 2: Locating Retaining Tabs
