61 31 172 Removing and installing/replacing switch for electromechanical parking brake (manual transmission)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CENTER CONSOLE COVER

Release screws (3).

Remove switch for electromechanical parking brake (1) from center console cover (2).

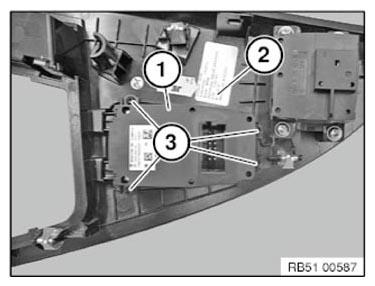

Fig 1: Identifying Parking Brake Switch, Center Console Cover, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
