51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove ENGINE COMPARTMENT LID SEAL in working area

Version with night vision:

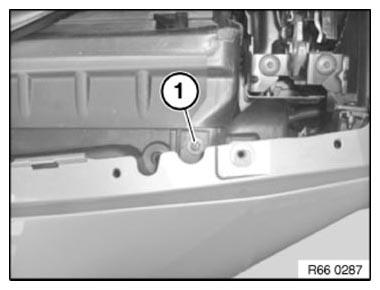

Release camera fixing screw (1) and remove.

Fig 1: Identifying Camera Holder Screw

G10062599

Courtesy of BMW OF NORTH AMERICA, INC.

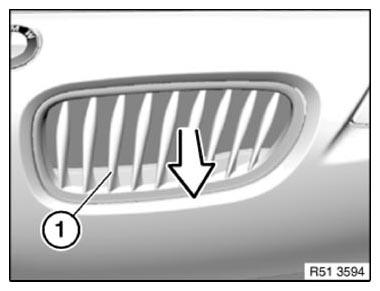

Press middle front radiator grille (1) upwards and pull in direction of arrow towards front.

Fig 2: Removing Middle Front Radiator Grille

G10062600

Courtesy of BMW OF NORTH AMERICA, INC.

Version with night vision:

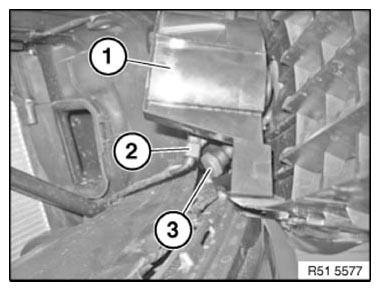

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1) and disconnect.

Fig 3: Identifying Plug Connection And High Pressure Nozzle Line On Night Vision Camera

G10062601

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All catches and guides on middle front radiator grille must not be damaged.

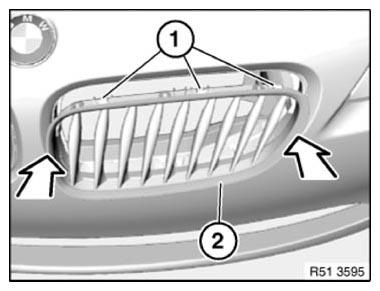

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 4: Installing Middle Front Radiator Grille

G10062602

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove NIGHT VISION CAMERA .
