51 11 183 Removing and installing (replacing) ornamental grille for bumper panel (side)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL

Release ornamental grille (2) at catches (1).

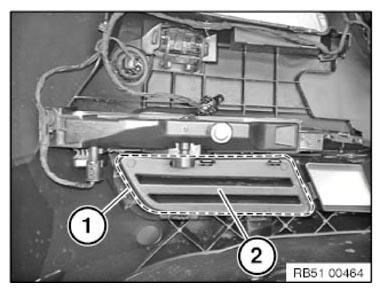

Fig 1: Identifying Ornamental Grille And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) must not be damaged or missing.

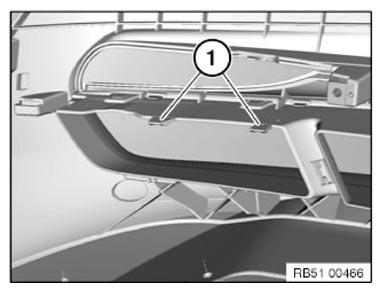

Fig 2: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
