63 17 070 Removing and installing/replacing left fog light

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)

NOTE: The time value of this job item does not include adjustment of the fog lights.

Necessary preliminary tasks:

For equipment specification with auxiliary radiator:

Remove front BUMPER PANEL

All other equipment specifications:

Remove front WHEEL ARCH COVER
Remove brake air duct.

Unfasten plug connection (1) and disconnect.

Remove cable clip (2).

Release screws (3).

Tightening torque 63 12 7AZ .

Remove fog lamp.

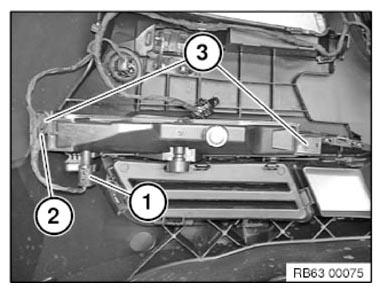

Fig 1: Identifying Cable Clip, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

On replacement of fog light or bumper panel at front:

ADJUST FOG LIGHTS
