51 16 040 Removing and installing/replacing housing on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove retaining ring on exterior mirror. See 51 16 045 REMOVING AND INSTALLING OR REPLACING RETAINING RING ON LEFT OR RIGHT EXTERIOR MIRROR .
Remove protective cap on exterior mirror. See 51 16 041 REMOVING AND INSTALLING/REPLACING COVER CAP ON LEFT OR RIGHT EXTERIOR MIRROR .
Remove mirror adjustment drive. See 67 13 001 REPLACING DRIVE UNIT FOR ELECTRICALLY OPERATED LEFT OR RIGHT EXTERIOR MIRROR .

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

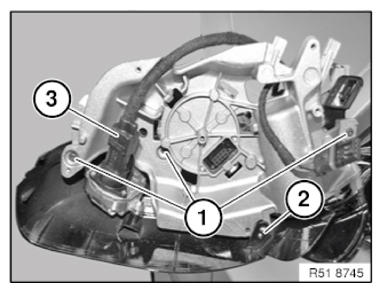

Fig 1: Identifying Connector, Latch Mechanism And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

Fig 2: Identifying Screw Holes From Exterior Mirror And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) and screw holes (2) on housing (3) must not be damaged.

For replacement with Top View camera version:

Move TOP VIEW CAMERA

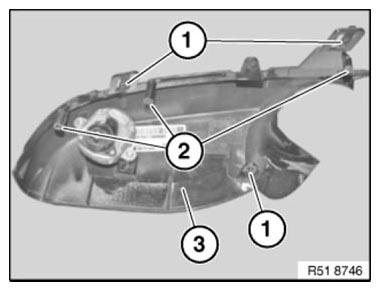

Fig 3: Identifying Catches And Screw Holes
Courtesy of BMW OF NORTH AMERICA, INC.
