51 16 045 Removing and installing or replacing retaining ring on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove DRIVE UNIT FOR EXTERIOR MIRROR

Version with lane change warning only:

Remove protective cap from exterior mirror. See 51 16 041 REMOVING AND INSTALLING/REPLACING COVER CAP ON LEFT OR RIGHT EXTERIOR MIRROR .

Version with lane change warning only:

Unlock plug connection (1) for optical signal transmitter and disconnect.

Fig 1: Identifying Plug Connection

G09879125

Courtesy of BMW OF NORTH AMERICA, INC.

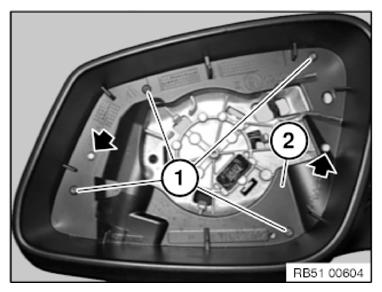

Release screws (1) from circlip (2).

Installation note:

Make sure retaining ring (2) is correctly seated.

Fig 2: Identifying Screws From Circlip

G10046147

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror forwards.

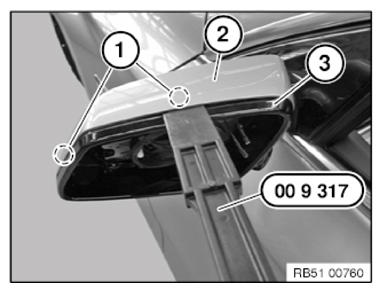

Unlock latch mechanisms (1) between protective cap (2) and retaining ring (3) using special tool 00 9 317 .

Feed out retaining ring (3) to the rear.

Fig 3: Removing Latch Mechanisms

G10046148

Courtesy of BMW OF NORTH AMERICA, INC.
