51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove DRIVE UNIT FOR EXTERIOR MIRROR

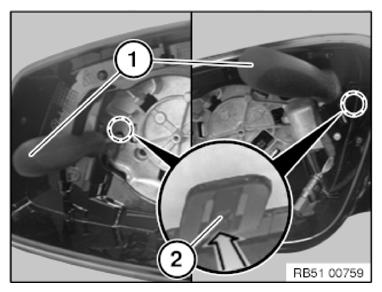

Unlock protective cap at latch mechanisms (2) using suitable tool (1).

Fig 1: Securing Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

Unlock latch mechanisms (1) between protective cap (2) and retaining ring (3) with special tool 00 9 317 .

Carefully pull up protective cap (2) and remove.

Fig 2: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

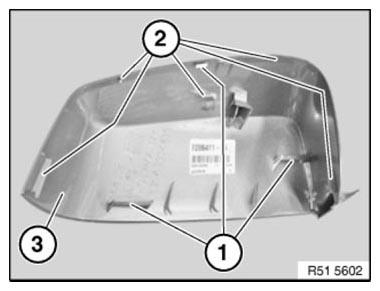

Catches (1) and guides (2) on cover cap (3) must not be damaged.

Fig 3: Identifying Catches And Guides On Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
