52 25... Replacing armrest lower section for rear seat backrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST for rear seat backrest

Release retaining ring (1) on left and right.

Release screws on left and right.

Installation:

Armrest upper section is coded against incorrect installation with plastic pins (2).

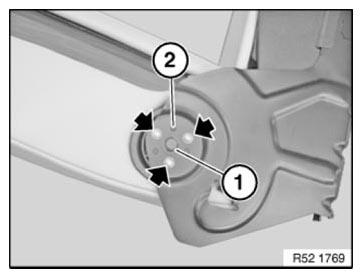

Fig 1: Locating Left And Right Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove COVER ON ARMREST
Remove CAP ON ARMREST
Remove DECORATIVE TRIM
Remove CAMOUFLAGE ON ARMREST
