52 25... Removing and installing/replacing camouflage on rear armrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Sliding blocks (1) are spring-mounted.

Press sliding blocks (1) on left and right inwards and tilt cover forwards.

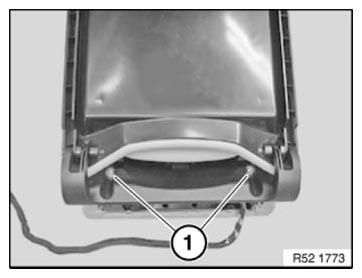

Fig 1: Pressing Left And Right Sliding Blocks

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

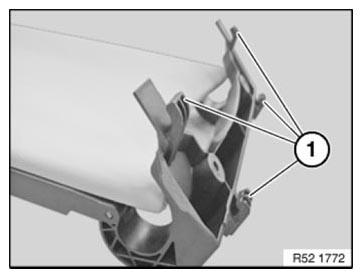

Fig 2: Identifying Rear Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) in direction of arrow.

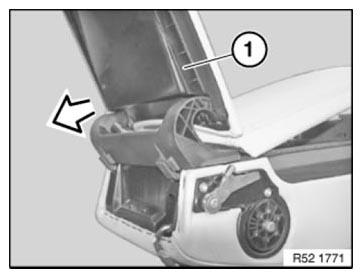

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guide (1) is correctly seated in armrest.

Fig 4: Identifying Armrest Guide

Courtesy of BMW OF NORTH AMERICA, INC.
