52 25... Removing and installing/replacing cover on armrest at rear

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRINKS HOLDER

Release screws (1).

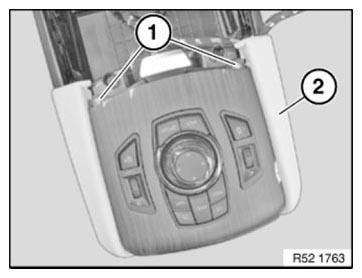

Fig 1: Identifying Drinks Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2) with wooden trim.

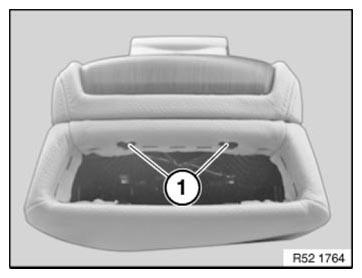

Fig 2: Identifying Wooden Trim Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove WOODEN TRIM .
