52 25 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Sliding blocks (1) are spring-mounted.

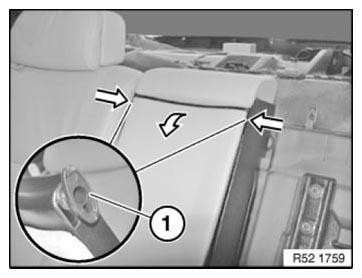

Press sliding blocks (1) on left and right inwards and tilt cover forwards.

Fig 1: Pressing Left And Right Sliding Blocks

Courtesy of BMW OF NORTH AMERICA, INC.

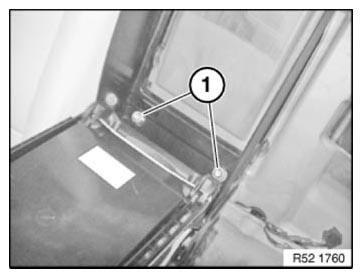

Release screws (1).

Tightening torque: see 1AZ in 52 25 REAR SEAT, ELECTRIC

Lever out armrest towards front.

Fig 2: Identifying Front Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

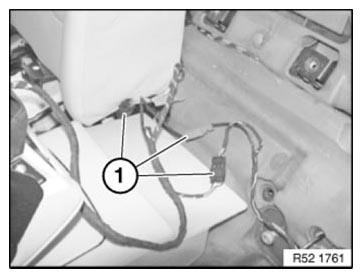

Unlock plug connections (1) and disconnect.

Installation:

Plug connections (1) are coded against incorrect installation.

Fig 3: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
