52 25... Removing and installing/replacing lid on rear armrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

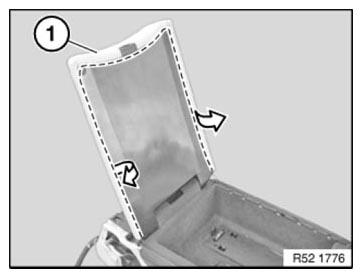

Open cover (1).

Unclip lid (1) in marked area with plastic wedge.

Fig 1: Removing Lid Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

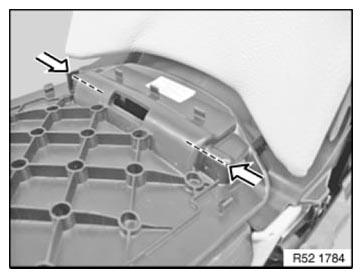

Drive out split pin on left and right.

Remove carrier for lid.

Fig 2: Removing Left And Right Split Pin

Courtesy of BMW OF NORTH AMERICA, INC.
