51 34 471 Replacing rear left or right door window glass (with roller sun blind)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

First move door window glass into position, see next work step
Remove DECORATIVE STRIP FROM WINDOW FRAME
Remove SOUND INSULATION
Remove ROLLER SUN BLIND ON SIDE WINDOW
Remove trims from window frame. See TRIM ON WINDOW FRAME OF REAR DOOR (REAR) and COVER ON WINDOW FRAME OF REAR DOOR (FRONT) .

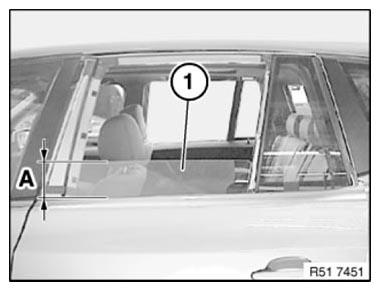

Open door window glass (1) up to measurement "A"

A = approx. 150 mm

Fig 1: Identifying Door Window Glass Opening Measurement

Courtesy of BMW OF NORTH AMERICA, INC.

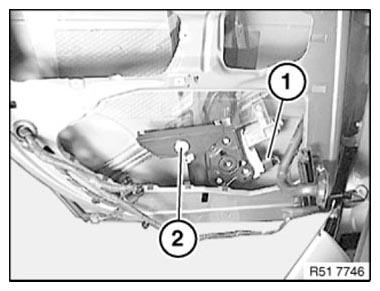

Disconnect plug (1) (risk of trapping).

Release locating clip (2).

Installation:

If necessary, INITIALIZE POWER WINDOW .

Fig 2: Identifying Plug And Locating Clip

Courtesy of BMW OF NORTH AMERICA, INC.

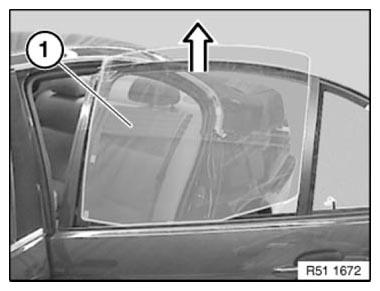

Remove door window glass (1) towards top.

Fig 3: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
