51 34 380 Remove and install/replace frame trim on window frame of rear door (outer) on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Do not scratch or damage visible surfaces.

Necessary preliminary tasks:

Remove SEAL FOR DOOR GAP / ROOF FRAME
Remove COVER ON DOOR WINDOW FRAME

Pull out rubber window seal in the frame trim area on the window border (1) (graphic shows removed status).

Lever out frame trim on window border (1) from the front beginning with special tool 00 9 325 .

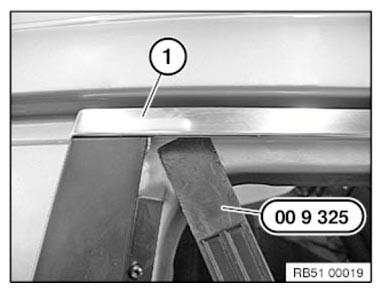

Fig 1: Removing Window Border Frame Trim Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully pull off frame trim (1) in outwards direction.

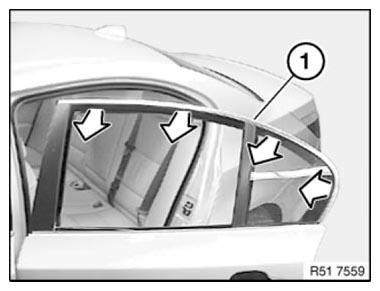

Fig 2: Pulling Frame Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clamps (1).

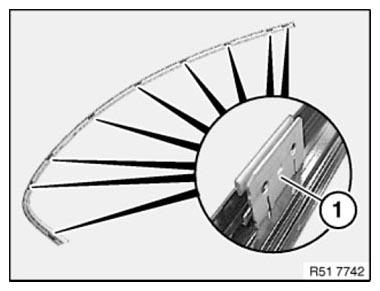

Fig 3: Identifying Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only for Saloon vehicle type:

Feed in the frame trim on the window border (1) at the rear correctly behind the window cavity cover strip.

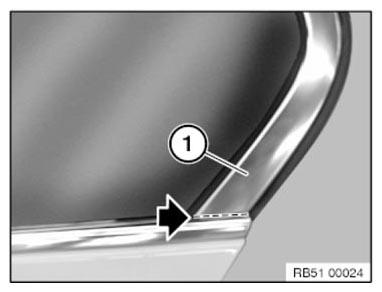

Fig 4: Locating Window Border Frame Trim
Courtesy of BMW OF NORTH AMERICA, INC.
