51 48 070 Removing and installing/replacing sound insulation on left or right rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

With roller sun blind optional extra only:

Remove engine.

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

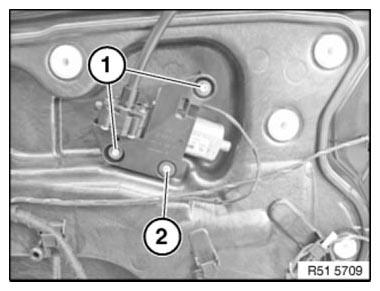

Fig 1: Identifying Rear Door Trim Panel And Screws

G08472293

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

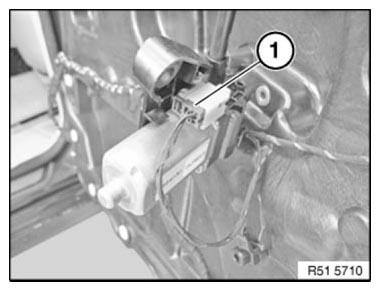

Fig 2: Identifying Plug Connection

G08472294

Courtesy of BMW OF NORTH AMERICA, INC.

Feed lines out of cable holder (1).

Disconnect plug connection (3) at door lock.

Release quick-connect couplings (2).

Remove sound insulation (4).

Installation:

If necessary, replace cable holders (1).

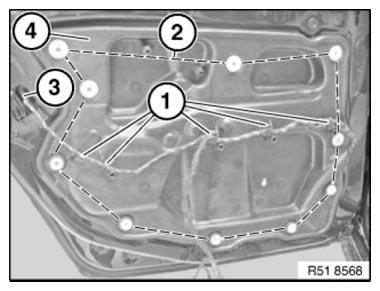

Fig 3: Identifying Cable Holder, Plug Connection, Quick-Connect Couplings And Sound Insulation

G08472295

Courtesy of BMW OF NORTH AMERICA, INC.
