51 34 420 Removing and installing/replacing cover on window frame of rear door (front), left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove OUTER WINDOW CAVITY COVER STRIP
Remove COVER ON INSIDE DOOR WINDOW FRAME
Feed out the SEAL FOR DOOR GAP / ROOF FRAME in the area of the cover

Pull off the rubber window seal in the area of the cover and approx. 10 centimeters at the front on the frame trim of the window frame.

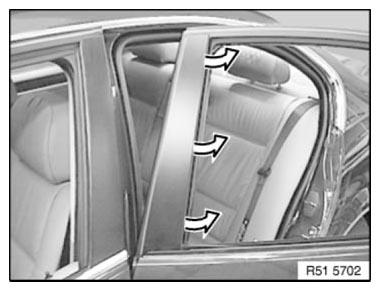

Fig 1: Pulling Rubber Window Seal

G08472102

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 35 4AZ .

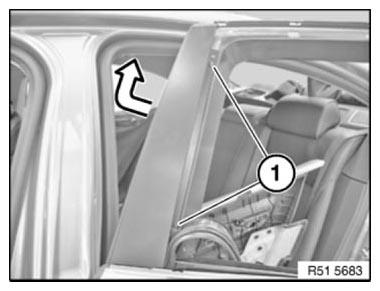

Fig 2: Removing Frame Window Trim

G08472103

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly lever out the frame trim on the window border (1) with special tool 00 9 325 .

Installation note:

If necessary, lock the frame trim on the window border (1) correctly with retaining clips.

Pull the cover off the window border at the side.

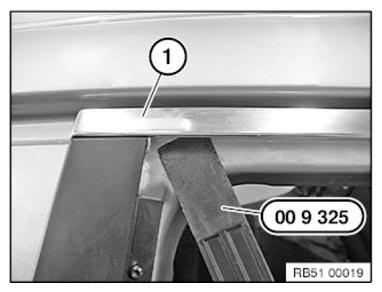

Fig 3: Removing Window Border Frame Trim Using Special Tool (00 9 325)

G08472104

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty plastic nuts on window border.

Feed in the cover (1) correctly on the window border.

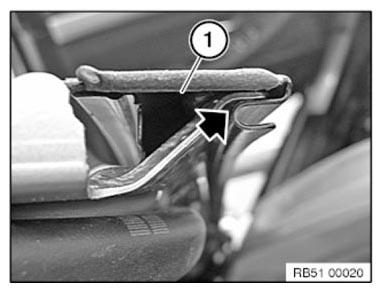

Fig 4: Removing Window Border Cover

G08472105

Courtesy of BMW OF NORTH AMERICA, INC.
