51 34... Removing and installing trim on window frame of rear door (rear), left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Do not scratch or damage visible surfaces.

Necessary preliminary tasks:

Remove WINDOW CAVITY COVER STRIP
DETACH COVER from window frame

Feed out rubber window seal (1) in vicinity of cover.

Installation note:

Follow INSTRUCTIONS for fitting rubber window seals.

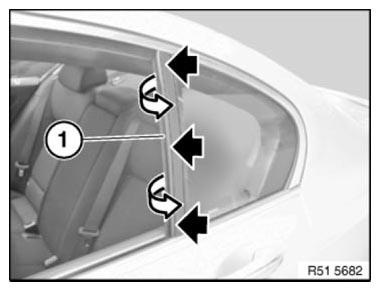

Fig 1: Removing Rubber Window Seal

G08472098

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screws (2) from cover (1).

Tightening torque 51 35 5AZ .

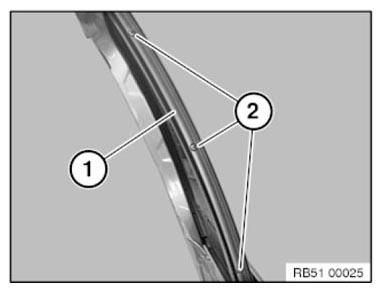

Fig 2: Identifying Cover And Screws

G08472099

Courtesy of BMW OF NORTH AMERICA, INC.

Lift frame trim from window frame (1) a little way using a special tool 00 9 325 and move cover (2) downwards.

Installation note:

Engage frame trim correctly into retaining clips at window frame (1) if necessary.

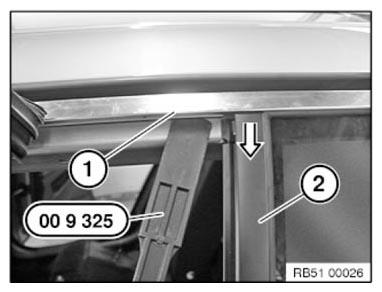

Fig 3: Lifting Frame Trim From Window Frame Using Special Tool (00 9 325)

G08472100

Courtesy of BMW OF NORTH AMERICA, INC.

Mask off frame trim at window frame with adhesive tape (2).

Carefully tilt cover (1) outwards, pull out upwards and lay it down.

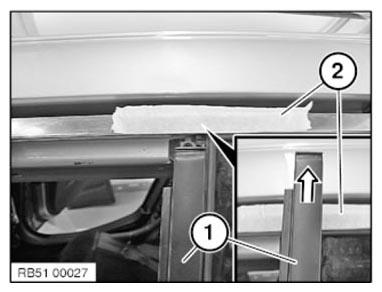

Fig 4: Pulling Out Window Frame Cover

G08472101

Courtesy of BMW OF NORTH AMERICA, INC.
