11 23 010 Removing and installing/replacing vibration damper (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FAN COWL
Remove alternator DRIVE BELT
Remove A/C compressor DRIVE BELT
Remove belt pulley for A/C system

Release screw (1).

Tightening torque: see 1AZ in 11 28 V-RIBBED BELT WITH TENSION AND DEFLECTION ELEMENT

Remove belt tensioner with idler pulley (2).

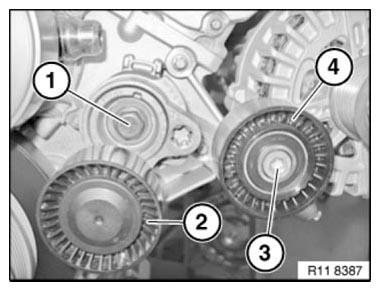

Fig 1: Identifying Idler Pulley With Screw

G08469215

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe fixture on belt tensioner (1) (risk of damage!) .

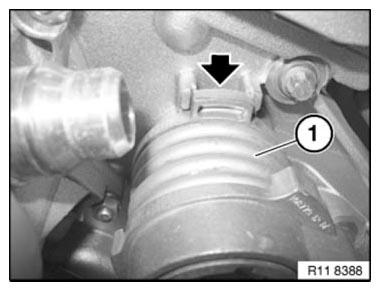

Fig 2: Identifying Belt Tensioner

G08469216

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 8 090 with three screws (1) to vibration damper.

Secure special tool 11 8 090 with belt tensioner bolt (2) to timing case cover.

Tightening torque: see 3AZ in 11 28 V-RIBBED BELT WITH TENSION AND DEFLECTION ELEMENT

NOTE: A 3/4 inch tool is needed to release the central bolt.

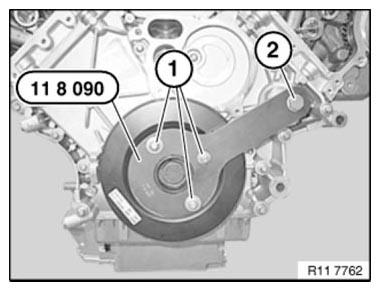

Fig 3: Securing Special Tool 11 8 090 With Belt Tensioner Bolt And Screws

G08469217

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolt on vibration damper.

Secure central bolt with special tool 00 9 140 or 11 3 460 .

Position special tool 11 3 460 on special tool 11 8 090 .

Adjust special tool 11 9 453 on special tool 11 9 454 using clamping screw to 0° on scale.

Tightening torque: see 1AZ in 11 23 VIBRATION DAMPER

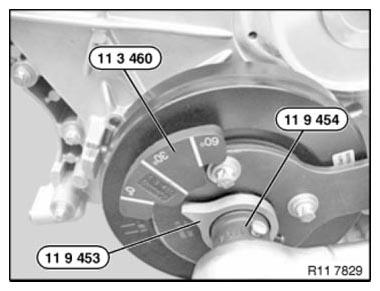

Fig 4: Adjusting Special Tool 11 9 453 On Special Tool 11 9 454 Using Clamping Screw

G08469218

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
