00-9140 Torque angle measuring dial

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

0495605 009140 Torque angle measuring dial MW

NOTE: (Torsion angle gauge 3/4" connection) For torsion angle adjustment of the central bolt up to 600 Nm. [Released]

Storage Location

B19

A19

SI number

01 20 06 (299)

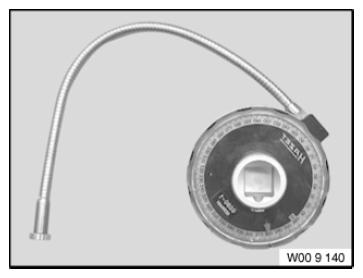

Fig 1: Identifying Torque Angle Measuring Dial (0495605)

Courtesy of BMW OF NORTH AMERICA, INC.
