17 11 035 Removing and installing/renewing fan cowl with electric fan (N74)

Necessary preliminary tasks:

• Read out fault memory of DME control unit
• Turn off ignition
• Remove CROSS-MEMBER
• Remove INTAKE MANIFOLDS on left and right
• Remove front UNDERBODY PROTECTION
• Remove REINFORCEMENT PLATE

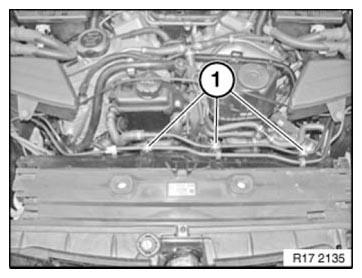

Release lines from fan cowl on clamps (1).

Fig 1: Identifying Fan Cowl Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug (1) on fan cowl.

Release screw (2) on holder for coolant hoses.

Tightening torque: see 5AZ in 17 10 RADIATOR, EXPANSION TANK

Detach coolant hoses with holder from fan cowl.

Fig 2: Removing Coolant Hose Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: see 3AZ in 17 10 RADIATOR, EXPANSION TANK

Pull off transmission oil cooler upwards from module carrier.

Fig 3: Identifying Fan Cowl Plug And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fan cowl (1) at retainers (2) on left and right, feed out in upward direction and remove.

Fig 4: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert retaining tab (1) at bottom on module carrier.

Fig 5: Identifying Module Carrier Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.
