11 28 050 Replacing A/C compressor drive belt with belt tensioner (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

Release screws (1) on vibration damper only if removal position is adjusted.

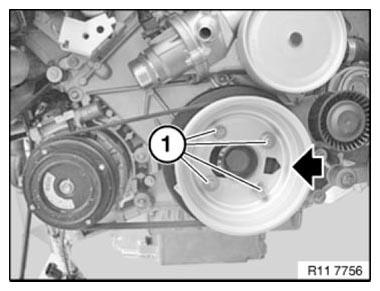

Fig 1: Identifying Screws On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

If contaminated with hydraulic fluid: Replace drive belt.

Crank engine at central bolt in direction of engine rotation.

Installation:

If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.

Necessary preliminary tasks:

Remove alternator DRIVE BELT

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow in illustration) is reached on vibration damper.

Release screws (1).

Tightening torque: see 3AZ in 11 28 V-RIBBED BELT WITH TENSION AND DEFLECTION ELEMENT

IMPORTANT: Belt pulley is pretensioned.

Belt pulley tension is relieved abruptly during the cranking process!

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow in illustration) is reached on vibration damper.

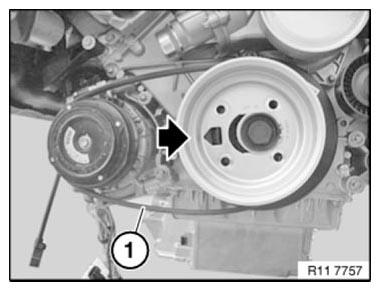

Fig 2: Removing Elasto-Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove elasto-belt.

Assemble engine.
