11 28 010 Replace alternator drive belt (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: If contaminated with hydraulic fluid: Replace drive belt.
Belt tensioner is under high initial spring tension.

Installation:

If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.

Necessary preliminary tasks:

Remove FAN COWL

Slowly and carefully preload belt tensioner (1) with a Torx socket T60 (2) in direction of arrow up to limit position.

Secure special tool 11 0 390 in dowel hole.

Belt tensioner (1) is in installation position.

Remove drive belt (3).

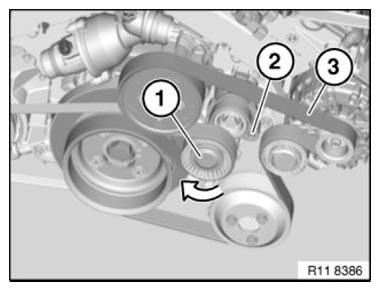

Fig 1: Identifying Drive Belt, Belt Tensioner And Torx Socket T60

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
