11 00 050 Removing and installing engine (S65)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Engine hood/bonnet in assembly position.
Drain ENGINE OIL .
Remove SUCTION FILTER HOUSING .
Remove INTAKE AIR MANIFOLD .
Remove underbody protection . See 5147490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION or 5147491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION at front and rear.
Remove TRANSMISSION (Important observe repair instructions).
Remove ELECTRIC FAN .
Remove RADIATOR with coolant hoses.
Drain coolant.
Remove EXPANSION TANK with coolant hose.
Draw off A/C SYSTEM .
Remove all lines . See 6453670 REPLACING LINE FROM COMPRESSOR TO EVAPORATOR (S85) , 6453660 REPLACING LINE FROM CONDENSER TO EVAPORATOR (S65) or 6453642 REPLACING LINE FROM COMPRESSOR TO CONDENSER (S65) from A/C compressor.
Remove SECONDARY-AIR PUMP .
Detach B+ LEAD in engine compartment.
Detach VACUUM HOSE from brake booster.
Release SUSPENSION CROSSBRACE in engine compartment.
Release grounding strap on engine support arm.

Release stabilizer (1) on front axle carrier at front.

Allow stabilizer (1) to hang loose.

Fig 1: Identifying Stabilizer

Courtesy of BMW OF NORTH AMERICA, INC.

Remove complete STEERING SPINDLE .

Remove heat shield.

Release screws (1).

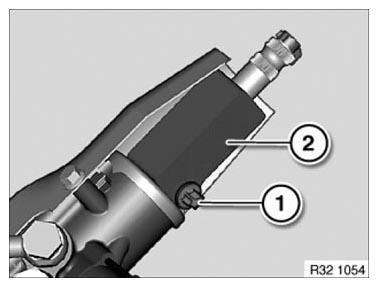

Detach steering spindle extension (2).

Tightening torque: 32 31 1AZ .

Fig 2: Identifying Steering Spindle Extension And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1 and 4).

Detach oil lines (2 and 3).

Recycling:

Have a cloth ready to catch a residual amount of engine oil.

Fig 3: Identifying Oil Lines And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure oil lines (1) with a cable tie (2) to front panel.

Fig 4: Securing Oil Lines With Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip heater hose (1) and set down with heating valve on engine.

Disconnect both hoses (2) from secondary-air valves.

Fig 5: Identifying Heater And Secondary-Air Valves Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to steering gear and oil sump.

Disconnect fuel line (1) and lock with special tool 13 5 280.

Disconnect flushing line (2).

Fig 6: Locking Fuel Line With Special Tool (13 5 280)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten engine wiring harness (1) on engine completely.

Secure engine wiring harness (1) with a cable tie (2) to engine hood/bonnet damper.

Fig 7: Securing Engine Wiring Harness With Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Release both clamps (1) with special tool 17 2 050.

Remove coolant hose (2).

Fig 8: Identifying Coolant Hose And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not release any hydraulic lines on the power steering pump.

Release power steering pump (1) on engine block.

Set down power steering pump (1) on front axle carrier.

Fig 9: Identifying Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew left and right engine mounts . See 2211001 REPLACING RIGHT ENGINE MOUNT (S65) or 2211011 REPLACING LEFT ENGINE MOUNT (S65) .

Secure special tool 11 0 000 LIFTING GEAR to suspension eyes (1).

Remove engine with 2 persons.

Fig 10: Securing Special Tool (11 0 000) To Suspension Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Top up COOLANT and vent cooling system.

Pour in specified engine oils for BMW Group engines. See ENGINE - OPERATING FLUIDS .

Install REPLACEMENT ENGINE .

Correct CBS data status.
