32 31 070 Removing and installing/replacing lower section of steering shaft
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.
This work may only be carried out on an exhaust system which has cooled down.
IMPORTANT:
If the lower section of the steering spindle is separated from the steering gear/universal joint, the steering-column switch cluster may be damaged when the steering wheel is turned.
Necessary preliminary tasks
- Remove UNIVERSAL JOINT

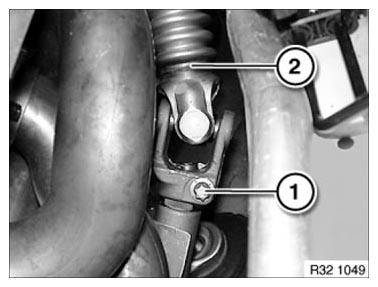

Release clamping screw (1).
Detach steering spindle lower section (2) from power steering gear.
Installation:
Clean thread to remove all remnants of screw securing adhesive.
Lower section of steering spindle can only be attached in one position to the power steering gear.
Replace clamping screw.
Clamping screw must rest in groove of power steering gear.
No kinking permitted!
Tightening torque 32 31 1AZ .
After installation
- Turn steering wheel in both directions to full lock. The airbag warning lamp must not light up in the process.
- Carry out STEERING ANGLE SENSOR ADJUSTMENT .
- Check directional stability of car.
