17 11 000 Removing and installing radiator (N51, S65)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

IMPORTANT: Wear protective goggles and gloves.

Necessary preliminary tasks:

Follow INSTRUCTIONS FOR WORKING on cooling system
Remove intake duct (S65).
Remove INTAKE FILTER HOUSING
Remove FAN COWL
Draining COOLANT
Unlock coolant hoses and detach

If fitted:

Remove heat exchanger for automatic transmission fluid

Automatic only

Release bolt and detach hose (1).

Fig 1: Locating Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

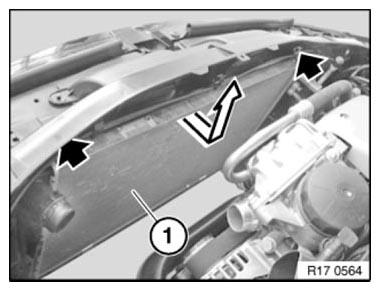

Carefully feed out radiator (1) towards top and remove.

NOTE: Illustration shows N54.

Fig 2: Removing Radiator Using Special Tool (11 8 670)

Courtesy of BMW OF NORTH AMERICA, INC.
