51 34 471 Replacing rear left or right door window glass (with roller sun blind)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

First move door window glass into position, see next work step
Remove DECORATIVE STRIP FROM WINDOW FRAME
Remove SOUND INSULATION
Remove ROLLER SUN BLIND ON SIDE WINDOW
Remove trims from window frame. See REMOVING TRIM (REAR) and REMOVING TRIM (FRONT) .

Open door window glass (1) up to measurement "A"

A = approx. 150 mm

Fig 1: Identifying Door Window Glass Opening Measurement

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1) (risk of trapping).

Release locating clip (2).

Installation note:

If necessary, INITIALIZE POWER WINDOW .

Fig 2: Identifying Plug And Locating Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door window glass (1) towards top.

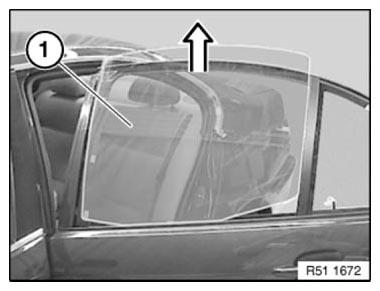

Fig 3: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
