51 16 405 Removing and installing/replacing sun protection on fond door window glass left and right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

NOTE: Shown with door removed for purposes of clarity.

Trim panel overview:

Remove outer (1) and inner (2) trim panel. Refer to the following steps.

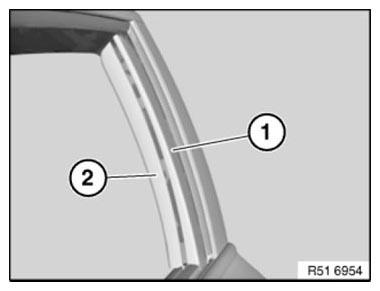

Fig 1: Identifying Outer And Inner Trim Panel

G06885492

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip inner trim panel (1).

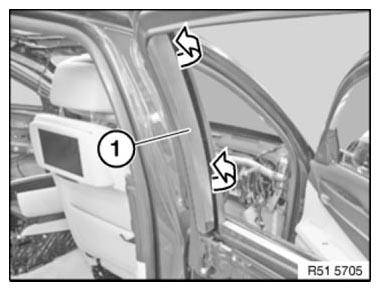

Fig 2: Identifying Inner Trim Panel

G06885493

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip outer trim panel (1).

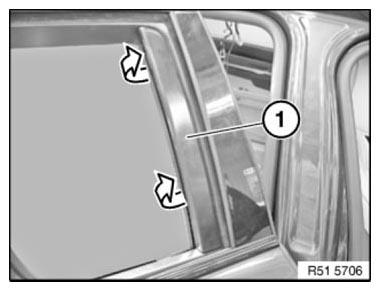

Fig 3: Identifying Outer Trim Panel

G06885494

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 17AZ .

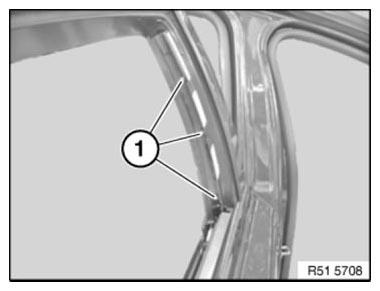

Fig 4: Identifying Trim Panel Screws

G06885495

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

Fig 5: Identifying Door Window Screws

G06885496

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Fig 6: Identifying Plug Connection

G06885497

Courtesy of BMW OF NORTH AMERICA, INC.

First remove trim panel (1) on top (2).

Unhook trim panel (1), pulling it up at an angle (see arrow).

Installation note:

Hook (arrow) and catches (2) must not be damaged.

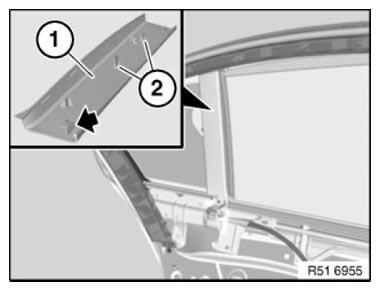

Fig 7: Removing Trim Panel

G06885498

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 51 16 18AZ .

Unlatch roller sun blind in marked area and remove.

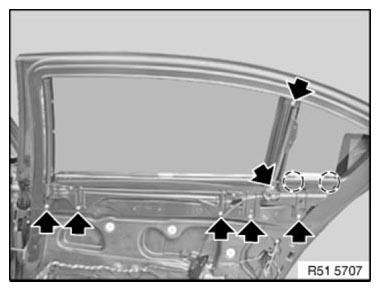

Fig 8: Locating Screws

G06885499

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches of roller sun blind (1) must not be damaged.

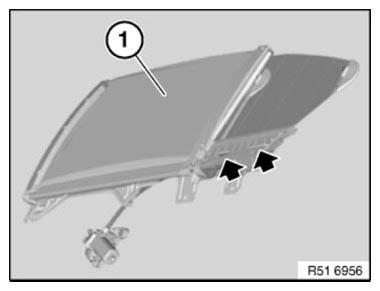

Fig 9: Identifying Roller Sun Blind
