51 34 420 Removing and installing/replacing cover on window frame of rear door (front), left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove OUTER WINDOW CAVITY COVER STRIP
Remove COVER ON INSIDE DOOR WINDOW FRAME
Feed out the SEAL FOR DOOR GAP/ROOF FRAME in the area of the cover

Pull off the rubber window seal in the area of the cover and approx. 10 centimeters at the front on the frame trim of the window frame.

Fig 1: Pulling Rubber Window Seal

G06885763

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 35 4AZ .

Fig 2: Identifying Frame Window Screws

G06885764

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly lever out the frame trim on the window border (1) with special tool 00 9 325 .

Installation note:

If necessary, lock the frame trim on the window border (1) correctly with retaining clips.

Pull the cover off the window border at the side.

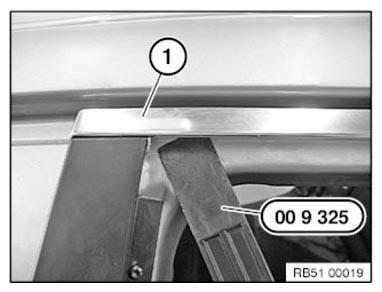

Fig 3: Removing Frame Trim On Window Border With Special Tool (00 9 325)

G06885765

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty plastic nuts on window border.

Feed in the cover (1) correctly on the window border.

Fig 4: Identifying Window Cover

G06885766

Courtesy of BMW OF NORTH AMERICA, INC.
