51 34 380 Remove and install/replace frame trim on window frame of rear door (outer) on left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

IMPORTANT:

Do not scratch or damage visible surfaces.

Remove SEAL FOR DOOR GAP/ROOF FRAME
Remove COVER ON DOOR WINDOW FRAME

Pull out rubber window seal in the frame trim area on the window border (1) (graphic shows removed status).

Lever out frame trim on window border (1) from the front beginning with special tool 00 9 325 .

Fig 1: Removing Frame Trim On Window Border With Special Tool (00 9 325)

G06885755

Courtesy of BMW OF NORTH AMERICA, INC.

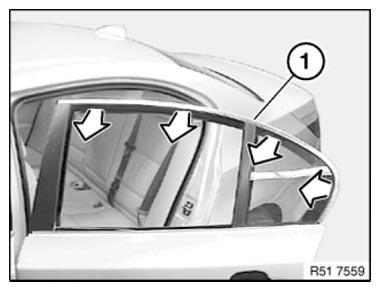

Carefully pull off frame trim (1) in outwards direction.

Fig 2: Removing Frame Trim

G06885756

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

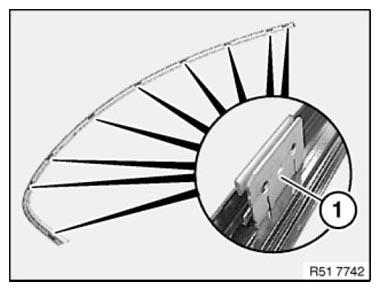

Replace faulty clamps (1).

Fig 3: Identifying Faulty Clamps

G06885757

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only for Saloon vehicle type:

Feed in the frame trim on the window border (1) at the rear correctly behind the window cavity cover strip.

Fig 4: Identifying Frame Trim On Window Border

G06885758

Courtesy of BMW OF NORTH AMERICA, INC.
