11 21 500 Replacing crankshaft (N52)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminium-magnesium materials.

No steel screws/bolts may be used due to the threat of electrochemical corrosion.

A magnesium crankcase requires aluminium screws/bolts exclusively.

Aluminium screws/bolts must be replaced each time they are released.

The end faces of aluminium screws/bolts are painted blue for the purposes of reliable identification.

Jointing torque and angle of rotation must be observed without fail (risk of damage).

Necessary preliminary tasks:

Release screws (1).

For tightening torque refer to 11 13 5AZ in 11 13 OIL PAN (N52) .

Installation:

Replace aluminium screws.

Remove oil deflector (2).

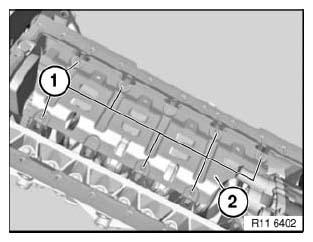

Fig 1: Identifying Oil Deflector And Mounting Screws
G04725435Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

For tightening torque refer to 11 11 2AZ in 11 11 ENGINE BLOCK (N52) .

Release screws (2).

For tightening torque refer to 11 11 3AZ in 11 11 ENGINE BLOCK (N52) .

Installation:

Replace aluminium screws.

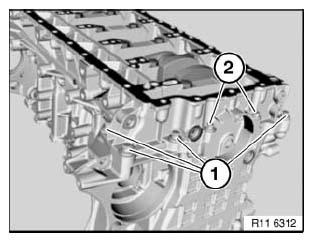

Fig 2: Identifying Engine Screws
G04725436Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

For tightening torque refer to 11 11 2AZ in 11 11 ENGINE BLOCK (N52) .

Release screws (2).

For tightening torque refer to 11 11 4AZ in 11 11 ENGINE BLOCK (N52) .

Installation:

Replace aluminium screws.

Release steel screws (1 to 14) from outside inwards.

For tightening torque refer to 11 11 1AZ in 11 11 ENGINE BLOCK (N52) .

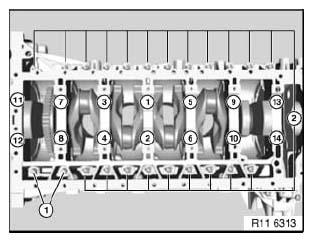

Fig 3: Crankshaft Bolts Tightening/Loosening Sequence
G04725437Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

For tightening torque refer to 11 11 3AZ in 11 11 ENGINE BLOCK (N52) .

Installation:

Replace aluminium screws.

Lift out bedplate.

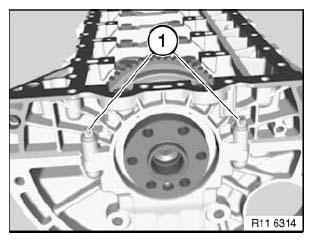

Fig 4: Identifying Radial Shaft Mounting Screws
G04725438Courtesy of BMW OF NORTH AMERICA, INC.

Remove both radial shaft seals (1).

NOTE: Illustrations show N46.

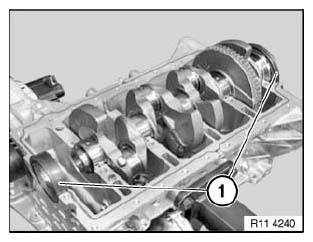

Fig 5: Identifying Radial Shaft Seals
G04725439Courtesy of BMW OF NORTH AMERICA, INC.

Remove Main Bearing Shells  (2 and 3), replace if necessary.

Remove and install crankshaft (1) in direction of arrow.

IMPORTANT: Remove crankshaft with aid of a second person.

Weight of crankshaft approx. 23 kg.

Fig 6: Identifying Main Bearing Shells And Crankshaft
G04725440Courtesy of BMW OF NORTH AMERICA, INC.

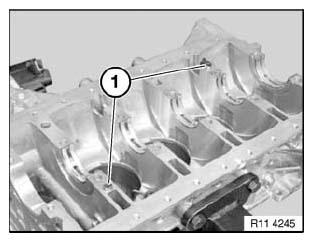

Check guide sleeves (1) for damage and correct seating.

Reinstall crankshaft.

Installation:

Lubricate all bearing points with engine oil.

Clean all sealing surfaces.

NOTE: Illustrations show N46.
Fig 7: Identifying Crankshaft Guide Sleeves
G04725441Courtesy of BMW OF NORTH AMERICA, INC.

Tighten steel screws (1 to 14) from inside outwards.

For tightening torque refer to 11 11 1AZ in 11 11 ENGINE BLOCK (N52) .

Tighten screws (2) from inside outwards.

For tightening torque refer to 11 11 4AZ in 11 11 ENGINE BLOCK (N52) .

Tighten screws (1).

For tightening torque refer to 11 11 2AZ in 11 11 ENGINE BLOCK (N52) .

Installation:

Replace aluminium screws.

Fig 8: Crankshaft Bolts Tightening/Loosening Sequence
G04725437Courtesy of BMW OF NORTH AMERICA, INC.

Tighten aluminium screws exclusively with special tool 00 9 120.

IMPORTANT: In the case of aluminium screws, jointing torque and angle of rotation must be observed without fail.

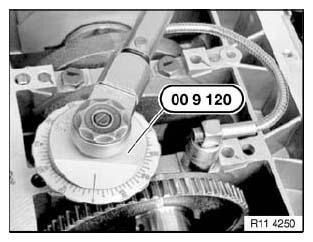

Fig 9: Identifying Special Tool (00 9 120)
G04725443Courtesy of BMW OF NORTH AMERICA, INC.

Set up stand with magnetic base on special tool 11 4 440.

Set up special tool 00 2 510 on stand.

Position special tool 00 2 510 on crankshaft.

Move crankshaft in direction of arrow.

Determine Bearing Play.

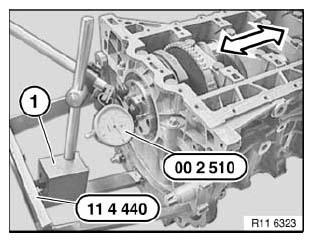

Fig 10: Identifying Special Tool (00 2 510) And (11 4 440)
G04725444Courtesy of BMW OF NORTH AMERICA, INC.

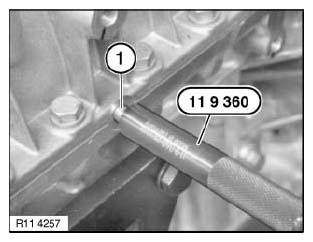

Drive in both nozzles (1) with special tool 11 9 360 on left and right into crankcase.

Installation:

Always replace nozzles (1).

Fig 11: Identifying Special Tool (11 9 360) And Crankcase Nozzle
G04725445Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Prepare sealing compound (1) in special tool 11 4 370.

Screw on nozzle for injecting sealing compound.

Slowly insert sealing compound (1) with special tool 11 4 370 in direction of arrow.

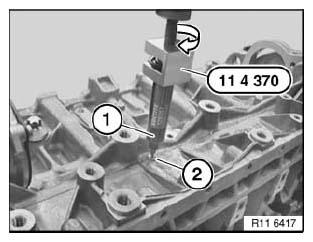

Fig 12: Identifying Special Tool (11 4 370)
G04725446Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial shaft seal at Front.

Replace radial shaft seal at Rear.

Assemble engine.
