51 47 315 Removing and installing / replacing front carpet for passenger compartment
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Storage Compartment
- Remove left/right Front Seat
- Remove Glovebox
- Remove side trim panel in footwell on Left /Right
- Remove Accelerator Pedal Module
Version with central bass speaker:
- Remove Central Bass Speaker Trim on left/right

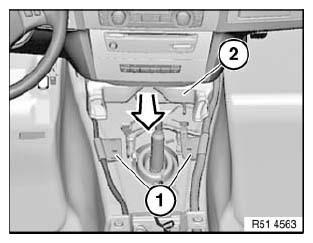

Remove holders (1) towards front.
Pull out air duct (2).

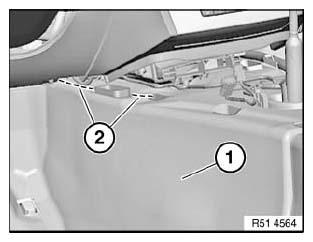

Cut out carpet (1) at cutting edge (2) on left/right.
IMPORTANT:
Risk of damage!
Make the cut as far as possible in the direction of the middle of the car to ensure that the cutting edges are covered by the storage compartment/panels.
Pay attention to cable(s) when cutting.
IMPORTANT:
Risk of damage!
Pay attention to cable(s) when cutting.

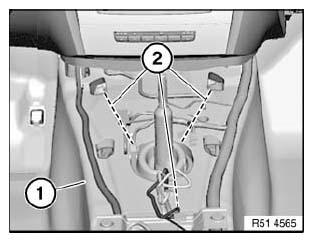

Cut out carpet (1) at cutting edge (2).
Guide cable back through carpet (1).
Feed out carpet (1) towards rear/top.

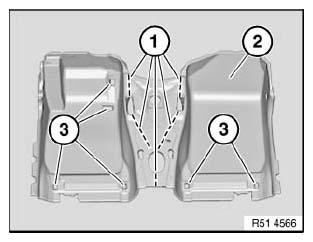

Cutting edges (1) shown on removed carpet (2).
Installation:
Apertures (3) serve as alignment points for fitting the carpet (2).
Replacement:
Place removed carpet on new carpet and carry over cuts to new carpet.
