51 11 157 Replacing front bumper trim

Necessary preliminary tasks:

• Remove Front Bumper Trim
• Remove Front Grille Centre Section
• Remove License Plate Holder
• Remove Middle Grille
• Remove Side Grille
• Remove cover cap for tow lug

Version with fog lamps:

• Remove Fog Lamps

Version with Park Distance Control (PDC):

• Remove Ultrasonic Transducer

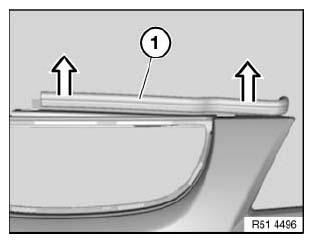

Remove seal (1) towards top.

Fig 1: Identifying Bumper Trim Seal

Courtesy of BMW OF NORTH AMERICA, INC.

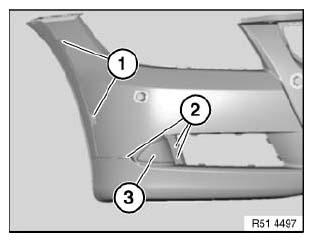

Detach sheet metal nuts (1) on right/left.

Version without fog lamps:

Release screws (2) and remove cover (3).

Remove sheet metal nuts on right/left below cover (3).

Fig 2: Identifying Sheet metal Nuts, Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

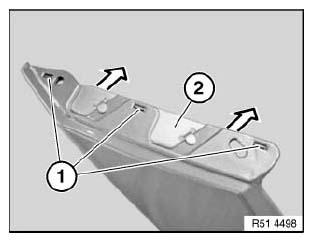

E90/E91 only:

Press down catches (1) an insert (2) and remove insert (2) in direction of arrow.

Fig 3: Identifying Catches And Insert (E90/E91 Only)

Courtesy of BMW OF NORTH AMERICA, INC.

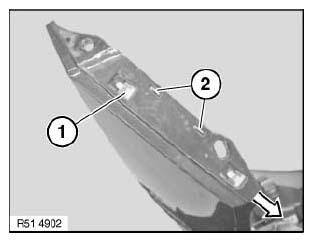

E92/E93 only:

Press down catches (2) on insert (1) and remove insert (1) in direction of arrow.

Fig 4: Identifying Catches And Insert (E92/E93 Only)

Courtesy of BMW OF NORTH AMERICA, INC.

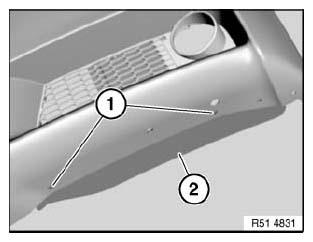

Version with M Technic aerodynamic kit:

Release expander rivets (1) and remove lip (2).

Fig 5: Identifying Expander Rivets And Lip

Courtesy of BMW OF NORTH AMERICA, INC.
