51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and pull bumper trim (3) forwards slightly.

Release catches (4) from inside and remove central radiator grille (2) towards front.

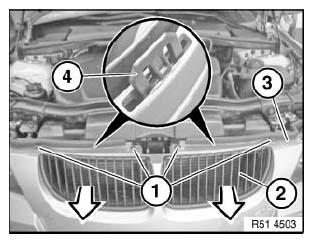

Fig 1: Identifying Central Radiator Grille, Bumper Trim And Screws
G04728178Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on middle front grille must not be damaged.

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

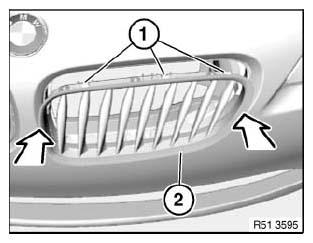

Fig 2: Identifying Front Radiator Grille And Grille Fixtures
G04728179Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release catches (1).

Remove chrome frame (2) from radiator grille (3).

Installation:

Catches (1) on chrome frame (2) and radiator grille (3) must not be damaged.

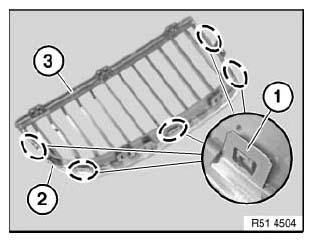

Fig 3: Identifying Catches, Chrome Frame And Radiator Grille
G04728180Courtesy of BMW OF NORTH AMERICA, INC.
