63 17 060 Removing and installing (replacing) left or right front fog lamp

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job does not include adjustment of the Fog Lamps !

Necessary preliminary tasks:

Remove Front Wheel Arch Cover (Front Section)

Disconnect plug connection (1).

Unfasten screws (2).

Remove fog lamp (3) towards rear from bumper trim (4).

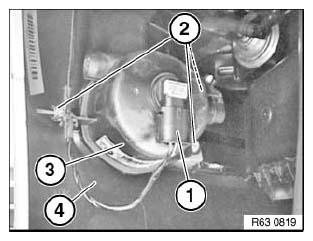

Fig 1: Identifying Fog Lamp, Plug Connection, Bumper Trim And Screw

G04727729

Courtesy of BMW OF NORTH AMERICA, INC.

Version with M Technic aerodynamic kit:

Disconnect plug connection (1).

Unfasten screws (2).

Remove fog lamp (3) towards rear from bumper trim.

Installation:

Tab (4) of fog lamp (3) must be correctly seated in holder (5).

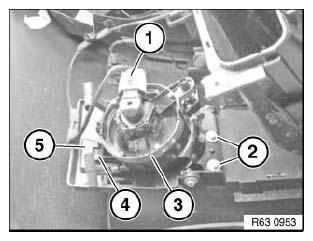

Fig 2: Identifying Plug Connection, Screws, Tab, Bumper Trim And Fog Lamp

G04727730

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Adjust front Fog Lamps .
