51 11 156 Removing and installing front bumper trim

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Version with headlight washer system:

Remove Cover For Headlight Washer System on left/right

Release screws (1) on bumper trim (2).

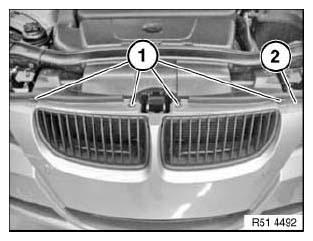

Fig 1: Identifying Mounting Screws And Bumper Trim

G04728140

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1) on wheel arch trim (2).

Lift out wheel arch trim (2) at side.

Installation:

Make sure wheel arch trim (2) is in correct position.

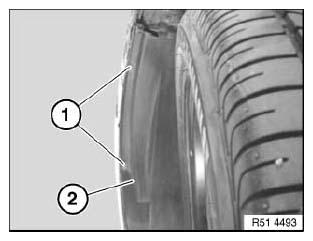

Fig 2: Identifying Screws And Wheel Arch Trim

G04728141

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Press wheel arch cover (1) to one side.

Release screws (2).

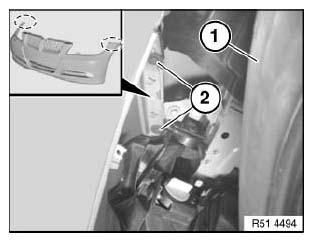

Fig 3: Identifying Wheel Arch Cover And Screws

G04728142

Courtesy of BMW OF NORTH AMERICA, INC.

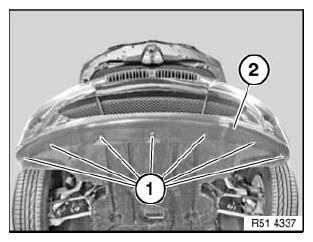

Release screws (1) on bumper trim (2).

Fig 4: Identifying Screws And Bumper Trim

G04728143

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage bumper trim when pulling off.

Detach bumper trim (1) at sides.

Pull bumper trim (1) forwards slightly and if necessary disconnect plug connections on ultrasonic sensors and/or fog lights.

Remove bumper trim (1) towards front with aid of a 2nd person.

Installation:

Height adjustment, refer to BODY GAP DIMENSIONS (E90) and BODY GAP DIMENSIONS (E91) .

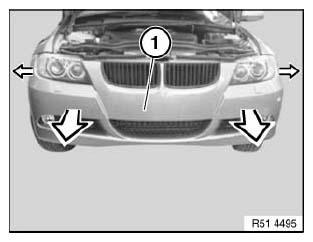

Fig 5: Identifying Front Bumper Trim

G04728144

Courtesy of BMW OF NORTH AMERICA, INC.
