51 11 180 Removing and installing / replacing centre grille for bumper trim

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Front Bumper Trim

Version with ACC:

Remove Cover For ACC Sensor

6-cylinder models without ACC only:

Release catches (1) from inside, taking care not to damage catch (2).

Remove trim (3) towards front.

Installation:

Catches (1 and 2) must not be damaged.

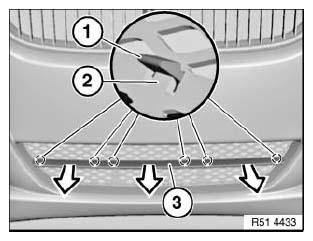

Fig 1: Identifying Catches And Trim (6-Cylinder Models Without ACC Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) on bumper trim (2).

Installation:

Catches (1) on bumper trim (2) must not be damaged.

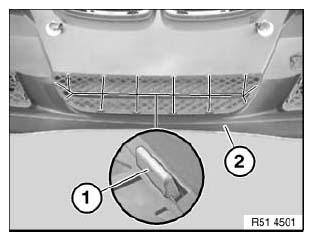

Fig 2: Identifying Catches And Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
