Remove/Install Crankcase Cover At Transmission End With Radial Shaft Sealing Ring - AR01.40-P-8930SVZ
Engine 279 in model 223
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Remove drive plate (1). | AR03.30-P-8003SVZ | |
| Clean | |||
| 2 | Clean crankcase in area of crankcase cover (2). | ||
| Remove | |||
| 3 | Unscrew bolts (4) and remove crankcase cover (2). | ||
| Clean | |||
| 4 | Clean sealing surfaces. | The sealing surfaces can be damaged otherwise. |
AR01.00-P-0050-01A |
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| Remove | |||
| 5 | Remove radial shaft sealing ring (3). | AR03.20-P-3064SVZ | |
| Install | |||
| 6 | Install crankcase cover (2). Information on application of sealant to end cover of crankcase |
AH01.40-Z-1000-04KWE | |
| Sealant, Loctite 5970, 50 ml | *BR00.45-Z-1013-01A | ||

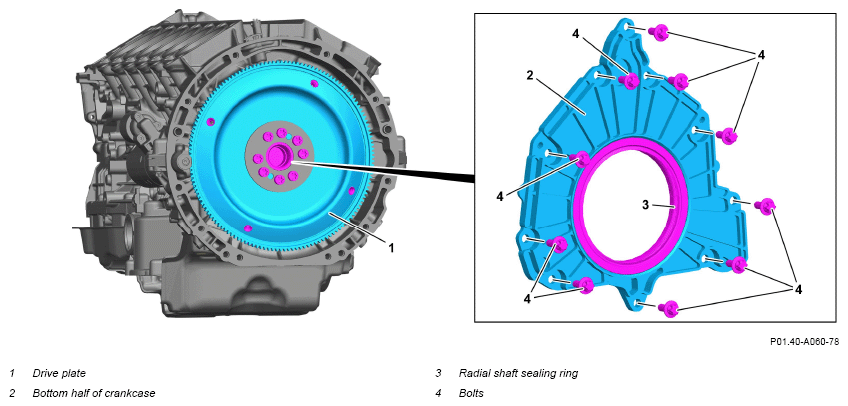

| Fig 1 | |||
| 7 | Screw in bolts (4) according to tightening procedure. | ||
| Tightening procedure for crankcase cover at transmission end | GF01.40-P-8913-01SVZ | ||
| *BA01.40-P-1002-01L | |||
| 8 | Install radial shaft sealing ring (3). | AR03.20-P-3064SVZ | |
| 9 | Install drive plate (1). | AR03.30-P-8003SVZ | |
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run and check engine for leak tightness. |
CRANKCASE, TIMING CASE COVER, END COVER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA01.40-P-1002-01L | Screw/bolt, rear end cover to crankcase | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
