Information On Application Of Sealant To End Cover Of Crankcase - AH01.40-Z-1000-04KWE
Engine 137.970, 275, 279
Engine 629
At front of engine
Engine 651 in model 447
Engine 651 in model 636
Engine 651 in model 639
Engine 651 in model 900
Engine 651 in model 907, 910
Engine 651.955/956/957 in model 906
Engine 651
- Do not spread sealing bead.
- Use only the sealant listed in the repair instructions.
- The sealant must be applied within 10 min.
- Apply sealant evenly in the form of a bead with a height and width of approx. 2.0 mm (±0.5 mm) along line (A) of the end cover.
- Component part temperature: minimum of +7°C up to maximum of +25°C.
- Sealant temperature: minimum of +7°C up to maximum of +25°C.
- After applying sealant, attach end cover within 10 minutes.
The sealing surfaces must be free of oil, grease and dirt.
Leaks may occur otherwise.

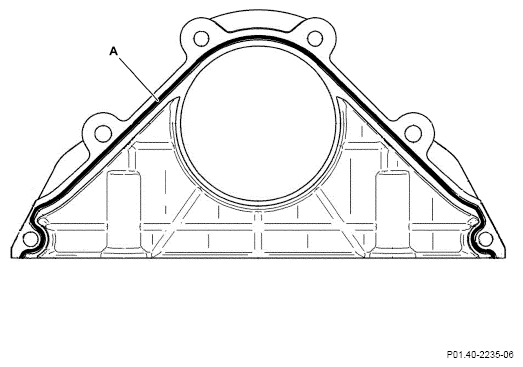

Engine 651
The superimposed line (A) marks the sealant path on the end cover.

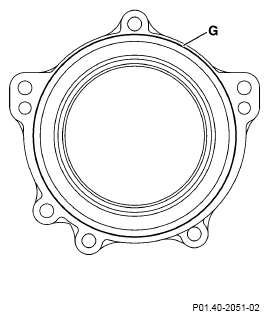

Engine 137.970, 275, 279
The line (G) identifies the sealant run.
Engine 629 at front of engine
The line (G) identifies the sealant run.
