Tightening Procedure For Crankcase Cover At Transmission End - GF01.40-P-8913-01SVZ

Engine 279 in model 223

Screws (1 to 10) of the crankcase cover are tightened in numerical order according to the specifications.

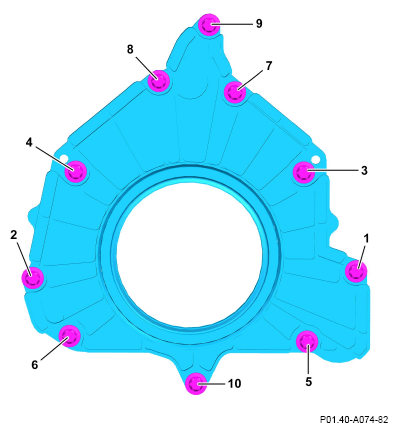

Fig 1: Crankcase Cover At Transmission End Tightening Sequence - Model 223 With Engine 279

Courtesy of MERCEDES-BENZ USA
