Remove/Install Rear Radial Shaft Sealing Ring On Crankshaft - AR03.20-P-3064SVZ
Engine 279 in model 223
| Remove | |||
| 1 | Remove drive plate (3). | AR03.30-P-8003SVZ | |
| 2 | Remove crankcase cover (2). | AR01.40-P-8930SVZ | |
| 3 | Remove radial shaft sealing ring (1) from crankcase cover (2) using screwdriver. | Leaks can occur otherwise. |
|
| Install | |||
| 4 | Install crankcase cover (2). | AR01.40-P-8930SVZ | |
| 5 | Install radial shaft sealing ring (1). | AR03.20-P-3063-01B | |

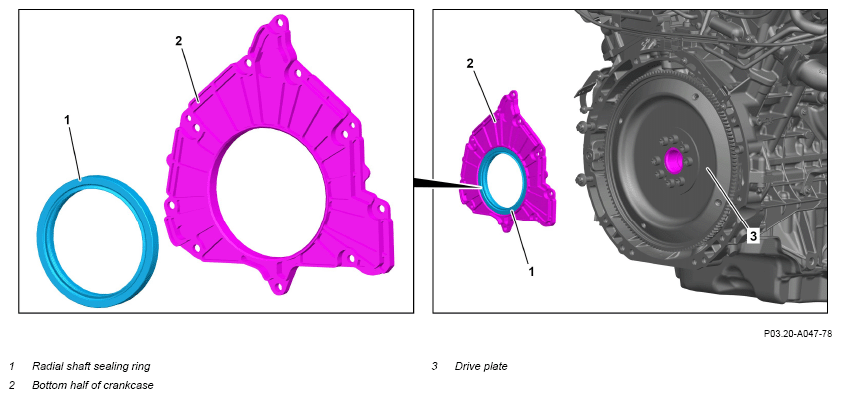

| Fig 1 | |||
| 6 | Install drive plate (3). | AR03.30-P-8003SVZ | |
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out engine test run and check engine for leak tightness. |
