Remove/Install Left Cylinder Head Cover - AR01.20-P-5013SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | |
| Remove/install | |||
| 1 | Remove left charge air cooler. | AR09.41-P-6827SVZ | |
| 2 | Remove left ignition coils. | AR15.12-P-2008SVZ | |

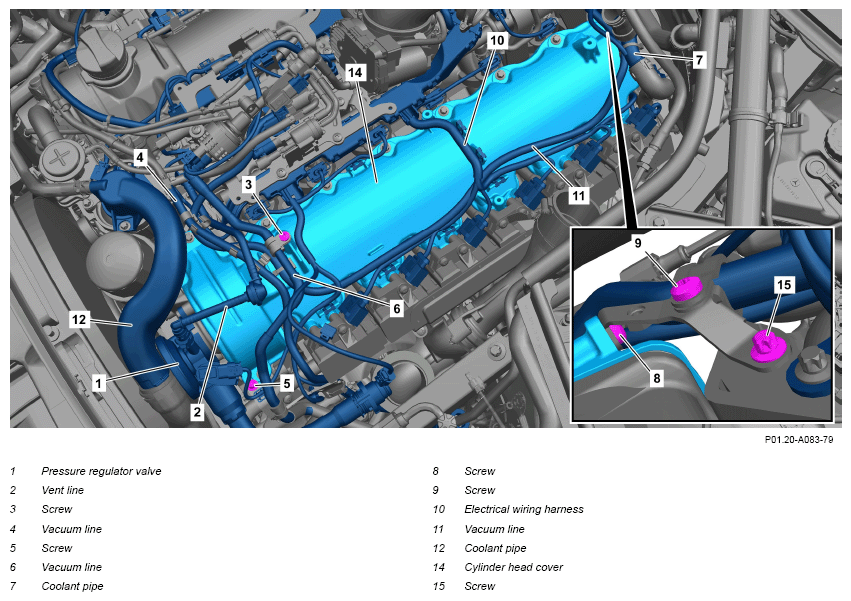

| 3 | Remove screw (3) and place vacuum line (6) to one side. | ||
| 4 | Remove vacuum line (4) and place to one side. | ||
| 5 | Remove bleed line (2) and place to one side. | ||
| 6 | Remove screw (5). | ||
| 7 | Remove electrical wiring harness (10) from cylinder head cover (14) and place to one side. | ||
| 8 | Remove vacuum line (11) from cylinder head cover (14) and place to one side. | ||
| 9 | Remove low-temperature circuit expansion reservoir. | AR09.41-P-0001SVZ | |
| 10 | Remove screws (8, 9, 15). | ||
| 11 | Remove coolant pipe (7). | Fig 1 | |
| 12 | Remove coolant pipe (12) and place to one side with connected lines. | *BA20.10-P-1005-01H | |
| *BA20.10-P-1006-01H | |||
| 13 | Remove pressure regulating valve (1). | AR01.20-P-2100SVZ | |

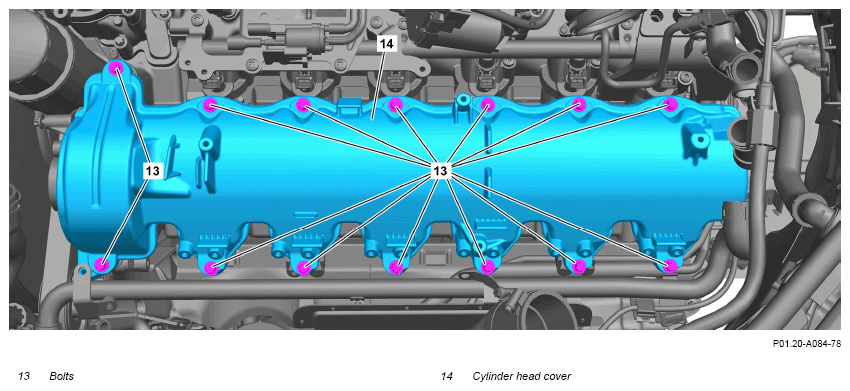

| 14 | Unscrew screws (13) in reverse order of tightening procedure and remove cylinder head cover (14). | ||
| Tightening procedure for left cylinder head cover | GF01.20-P-5013-01SVZ | ||
| *BA01.20-P-1001-01T | |||
| 15 | Install in the reverse order. | ||
| Check | |||
| 16 |
Check, correct engine oil level. | AP18.00-P-1812A | |
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Carry out engine test run and check engine for leak tightness. |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 279 | ||
|---|---|---|---|---|
| BA01.20-P-1001-01T | Screw/bolt, cylinder head cover to cylinder head | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 120 | ||
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA20.10-P-1005-01H | Screw/bolt, coolant pipe to coolant thermostat | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA20.10-P-1006-01H | Screw/bolt, coolant pipe to cover on the left | Nm | 9 |
