Tightening Procedure For Left Cylinder Head Cover - GF01.20-P-5013-01SVZ

Engine 279 in model 223

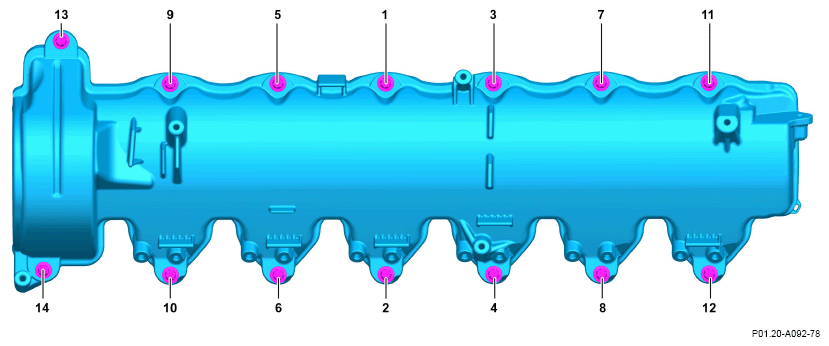

G16230704Courtesy of MERCEDES-BENZ USA

IMPORTANT Screws (1 to 14) of the left cylinder head cover are tightened in numerical sequence as per specification.
