Remove/Install Coolant Feed Line For Right Turbocharger - AR09.41-P-0012SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove right air filter housing. | AR09.10-P-1152SVZ | |
| 2 | Remove water-cooled right charge air cooler. | AR09.41-P-6828SVZ | |
| 3 | Remove right charge air pipe downstream of right exhaust gas turbocharger. | AR09.41-P-1333SVZ | |
| 4 | Remove ignition coils of right cylinder bank. | AR15.12-P-2009SVZ | |
| 5 | Remove the transmission with torque converter. | Engine 279 in model 223 with transmission 725.0 | AR27.10-P-0500SVZ |
| 6 | Remove crankshaft Hall sensor and tie electric line to the side. | AR15.12-P-2136SVZ | |

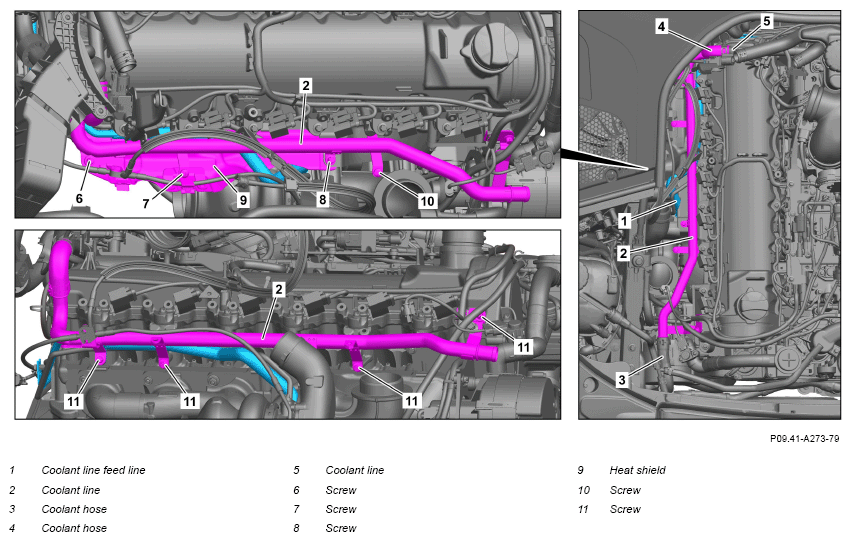

| 7 | Open clamp and remove coolant hose (3) from coolant line (2). | Fig 2 | |
| Fig 3 | |||
| 8 | Open clamp and remove coolant hose (4) from coolant line (5). | Fig 2 | |
| Fig 3 | |||
| 9 | Remove screws (6, 7, 8). | ||
| 10 | Expose heat shield (9) and guide out. | ||
| 11 | Remove the screw (10). | ||
| 12 | Unscrew screws (11) and guide out coolant line (2). | *BA20.10-P-1009-01H | |

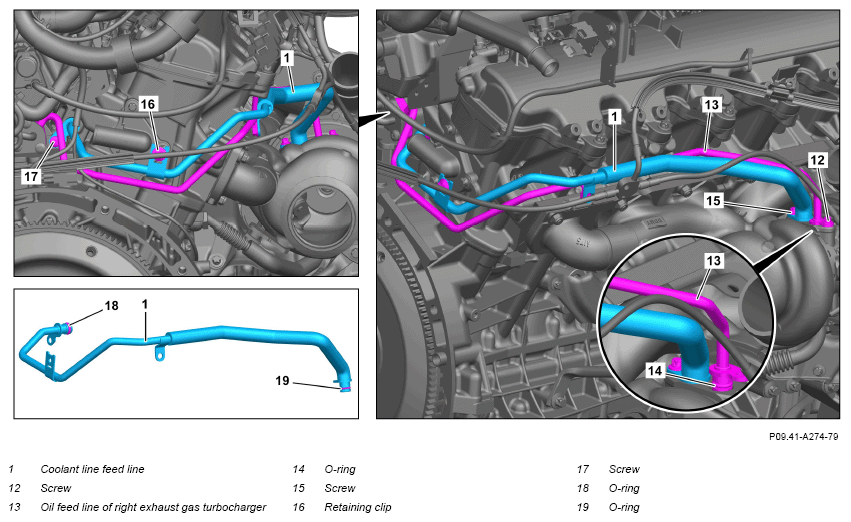

| 13 | Remove screw (12) and pull oil feed line of right exhaust gas turbocharger (13) out of exhaust gas turbocharger. | Only pull out oil feed line of right exhaust gas turbocharger (13) to extent that coolant feed line (1) can be removed. Oil feed line of right exhaust gas turbocharger (13) will otherwise be damaged. |
*BA09.40-P-1004-01V |
| Fig 4 | |||
| Fig 1 | |||
| 14 | Remove screw (15). | *BA09.40-P-1004-01V | |
| 15 | Remove retaining clip (16). | ||
| 16 | Remove screw (17). | *BA09.40-P-1007-01V | |
| 17 | Remove coolant feed line (1). | Fig 4 | |
| Fig 1 | |||
| Check | |||
| 18 | Check coolant feed line (1) for damage. | If damage is present: ↓ Replace coolant feed line (1). |
|
| 19 | Install in the reverse order. |
EXHAUST GAS TURBOCHARGER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA09.40-P-1004-01V | Bolt, oil feed and coolant line pipe to turbocharger | Nm | 8 |
EXHAUST GAS TURBOCHARGER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA09.40-P-1007-01V | Bolt, coolant line to bottom half of crankcase | Nm | 8 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA20.10-P-1009-01H | Screw/bolt, coolant pipe to cylinder head cover/cylinder head/heat shield | Nm | 9 |
