Remove/Install Ignition Coils Of Right Cylinder Bank - AR15.12-P-2009SVZ
Engine 279 in model 223

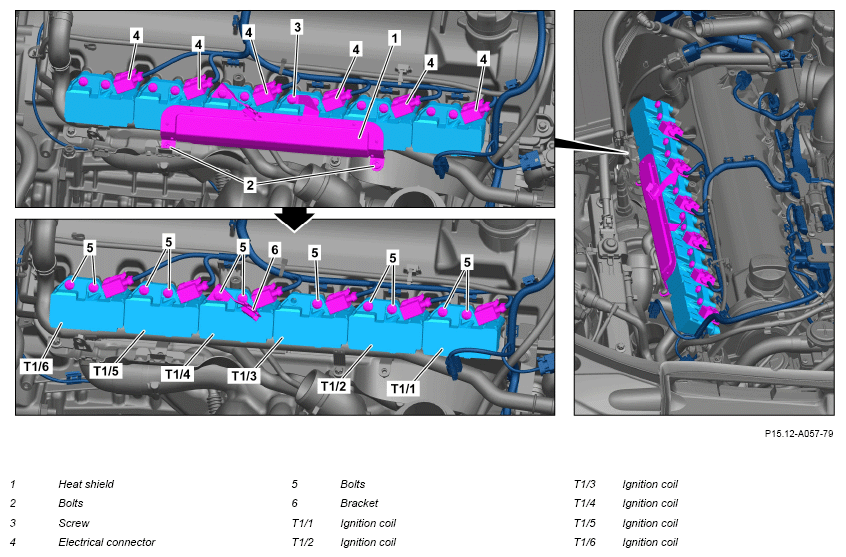

Shown with right charge air cooler removed
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Detach right charge air cooler and place to one side with coolant hoses connected. | AR09.41-P-6828SVZ | |
| 2 | Remove right charge air pipe downstream of exhaust gas turbocharger. | AR09.41-P-1333SVZ | |
| 3 | Remove screw (3). | *BA15.10-P-1001-04C | |
| 4 | Unscrew screws (2) and remove heat shield (1). | *BA15.10-P-1002-04C | |
| 5 | Release and disconnect the electrical connections (4). | ||
| 6 | Unscrew screws (5) at ignition coils (T1/1, T1/2, T1/3, T1/4, T1/5, T1/6). | *BA15.10-P-1001-04C | |
| 7 | Pull off ignition coils (T1/1, T1/2, T1/3, T1/4, T1/5, T1/6) upward and remove. | Apply spark plug connector grease before installation of spark plug connector to reduce the draw-off/attachment forces. Otherwise the spark plug connector will be damaged when removed again. |
|
| Spark plug connector grease 35 g | *BR00.45-Z-1102-06A | ||
| Check | |||
| 8 | Check ignition coils (T1/1, T1/2, T1/3, T1/4, T1/5, T1/6) and spark plug connectors for damage. | If damage is present: ↓ Replace corresponding ignition coil (T1/1, T1/2, T1/3, T1/4, T1/5, T1/6) and/or corresponding spark plug connector. |
|
| 9 | Check ignition coils (T1/1, T1/2, T1/3, T1/4, T1/5, T1/6) and spark plug connectors for contact corrosion. | If contact corrosion is present: ↓ Clean corresponding contact or replace ignition coil (T1/1, T1/2, T1/3, T1/4, T1/5, T1/6) and/or corresponding spark plug connector. |
|
| 10 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform an engine test run and check the engine for proper function. |
IGNITION COIL
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.10-P-1001-04C | Screw/bolt, ignition coil to cylinder head cover | Nm | 9 |
IGNITION COIL
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.10-P-1002-04C | Screw/bolt for ignition coil heat shield | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1102-06A | Spark plug connector grease 35 g | A 002 989 08 08 |
