Remove/Install Charge Air Pipe Downstream Of Turbocharger - AR09.41-P-1333SVZ
Engine 279 in model 223

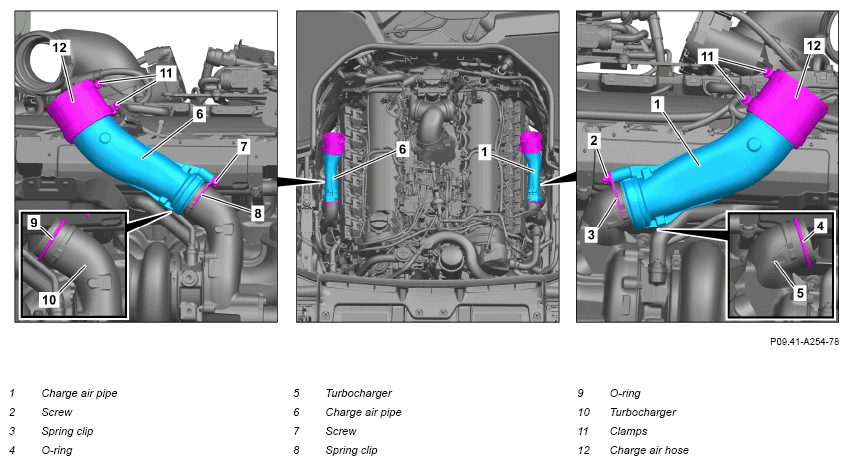

Shown with removed charge air coolers
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Release corresponding charge air cooler and place to one side with coolant lines connected. | Remove/install left water-cooled charge air cooler | AR09.41-P-6827SVZ |
| Remove/install right water-cooled charge air cooler | AR09.41-P-6828SVZ | ||
| 2 | Unscrew screw (7), remove spring U-bolt (8), and remove charge air pipe (6). | If right charge air pipe (6) is removed. |
*BA09.41-P-1011-01Q |
| Fig 1 | |||
| Fig 2 | |||
| 3 | Unscrew screw (2), remove spring U-bolt (3), and remove charge air pipe (1). | If left charge air pipe (1) is removed. |
*BA09.41-P-1011-01Q |
| Fig 1 | |||
| Fig 2 | |||
| 4 | Remove clamps (11) and charge air hose (12). | If charge air pipe (1, 6) is replaced. | |
| Check | |||
| 5 | Check clamps (11) and charge air hose (12) for damage. | If damage is present: ↓ Replace clamps (11) and/or charge air hose (12). |
|
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out engine test run and check engine for proper operation and leak tightness. |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA09.41-P-1011-01Q | Screw/bolt, charge air line spring U-bolt to turbocharger | Nm | 9 |
