Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136SVZ
Engine 279 in model 223
Shown on removed engine
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left air filter housing. | AR09.10-P-1151SVZ | |
| 2 | Release left charge air cooler and place to one side with coolant lines connected. | AR09.41-P-6827SVZ | |

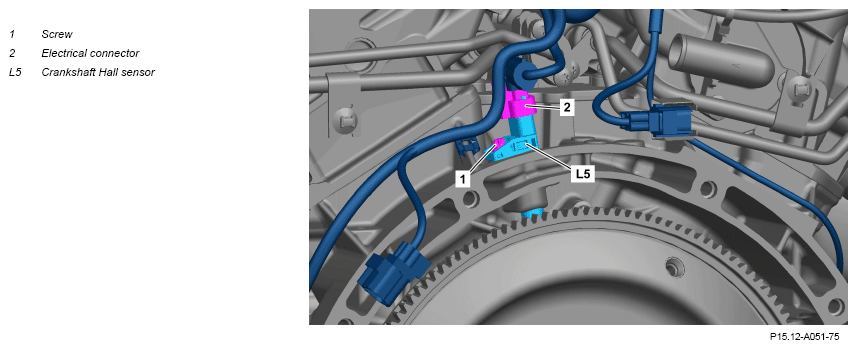

| 3 | Release and disconnect the electrical connector (2). | ||
| 4 | Unscrew screw (1) and pull out crankshaft Hall sensor (L5). | *BA15.10-P-1001-03K | |
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Read out and delete fault memory using diagnostic system. | ||
| AD00.00-P-2000-06FR | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check the engine for proper function. |
POSITION SENSOR
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.10-P-1001-03K | Screw/bolt, crankshaft Hall sensor to intermediate housing | Nm | 8 |
