Remove/Install Rear Door Window Guide Seal - AR72.12-P-0004SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Risk of injury from pinching or crushing hands and feet when working on windows. | Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes. | AS67.00-Z-0003-01A | |
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | |
| Remove | |||
| 1 | Remove rear side window. | AR67.30-P-0006SG | |
| 2 | Remove front trim strip at window frame of corresponding rear door (8). | Model 223 with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) Model 223 with code Z07 (B7 armoring on special protection version) with code Z14 (Right rear power window with special protection) |
AR72.12-P-1713SG |
| Model 223 with code Z07 (B7 armoring on special protection version) except code Z13 (Left rear power window with special protection) except code Z14 (Right rear power window with special protection) |
AR72.12-P-1713SGA | ||
| 3 | Remove upper trim strip from window frame. | AR72.12-P-1711S | |
| 4 | Remove rear trim strip from window frame. | AR72.12-P-1714SG | |

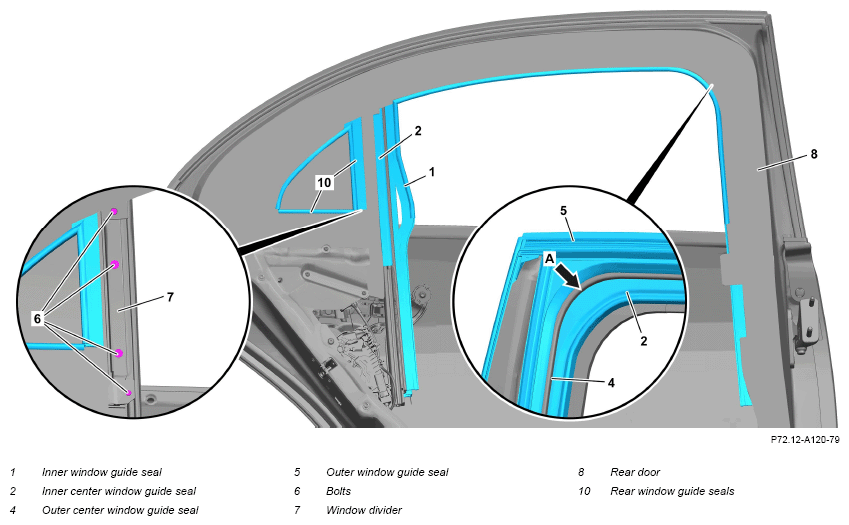

| 5 | Remove inner window guide seal (1). | ||
| 6 | Remove adhesive strip in marked area (arrow A) and remove inner center window guide seal (2). | ||

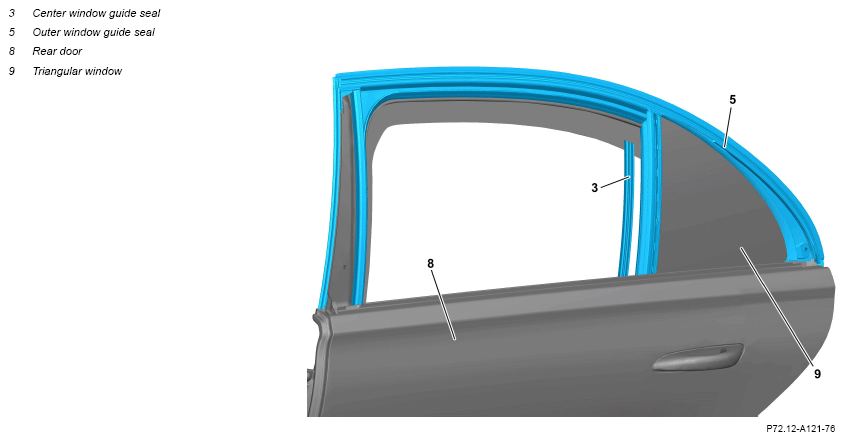

| 7 | Remove center window guide seal (3). | ||
| 8 | Remove outer center window guide seal (4). | ||
| 9 | Unscrew screws (6) and remove window divider (7). | ||

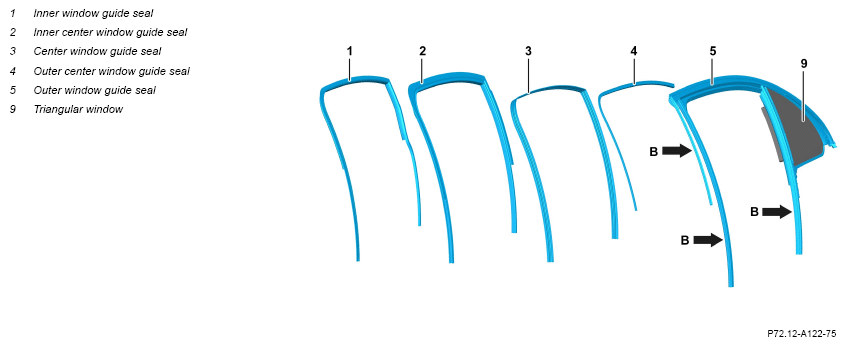

| 10 | Pull marked areas (arrows B) of outer window guide seal (5) out of rear door (8). | ||
| 11 | Extend triangular window (9) together with outer window guide seal (5) toward front out of rear door (8) and remove. | ||
| 12 | Remove rear window guide seals (10). | ||
| 13 | Remove triangular window (9) from outer window guide seal (5). | ||
| 14 | Remove adhesive residue and clean bonding areas of window guide seals (1, 2, 3, 4, 5, 10). | ||
| Install | |||
| 15 | Install triangular window (9) in new outer window guide seal (5). | ||
| 16 | Install new rear window guide seals (10). | ||
| 17 | Push triangular window (9) together with new outer window guide seal (5) toward rear into rear door (8) and position. | ||
| 18 | Install marked areas (arrows B) of outer window guide seal (5) in rear door (8). | ||
| 19 | Install window divider (7) and screw in screws (6). | ||
| 20 | Install new outer center window guide seal (4). | ||
| 21 | Install new center window guide seal (3). | ||
| 22 | Install new inner center window guide seal (2). | ||
| 23 | Install new inner window guide seal (1). | ||
| 24 | Install rear trim strip on window frame. | AR72.12-P-1714SG | |
| 25 | Install upper trim strip in window frame. | AR72.12-P-1711S | |
| 26 | Install front trim strip on window frame of corresponding rear door (8). | Model 223 | AR72.12-P-1713SG |
| with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) Model 223 with code Z07 (B7 armoring on special protection version) with code Z14 (Right rear power window with special protection) |
|||
| Model 223 with code Z07 (B7 armoring on special protection version) except code Z13 (Left rear power window with special protection) except code Z14 (Right rear power window with special protection) |
AR72.12-P-1713SGA | ||
| 27 | Install rear side window. | AR67.30-P-0006SG |
