Remove/Install Front Trim Strip On Window Frame Of Rear Door - AR72.12-P-1713SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z13 (Left rear power window with special protection)

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z14 (Right rear power window with special protection)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Remove/install

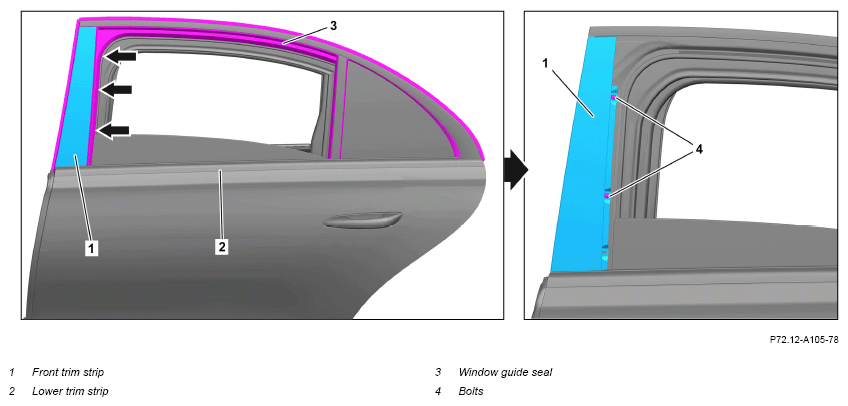

1	Move right and/or left rear door side window to lowest position.
2	Remove lower trim strip (2) at window frame of rear door.		AR72.12-P-1712S
3	Release window guide seal (3) in area of front trim strip (1) (arrows).	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
		Long wedge	Fig 1
4	Remove screws (4).
5	Remove front trim strip (1).
6	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
