Remove/Install Rear Door Side Window - AR67.30-P-0006SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
Notice	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove
1.1	Remove corresponding window lifter at rear door.	Model 223 with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) Model 223 with code Z07 (B7 armoring on special protection version) with code Z14 (Right rear power window with special protection)	AR67.39-P-0012SG
1.2	Remove corresponding bracket of side window (1) at rear door.	Model 223 with code Z07 (B7 armoring on special protection version) except code Z13 (Left rear power window with special protection) except code Z14 (Right rear power window with special protection)	AR67.39-P-0015SG

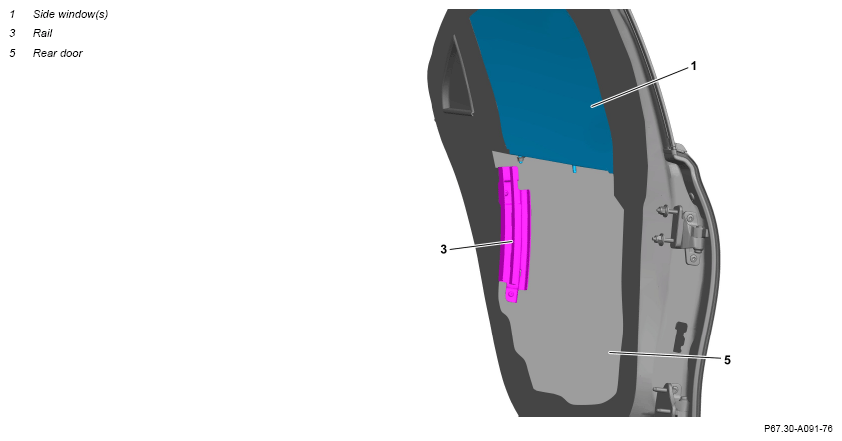

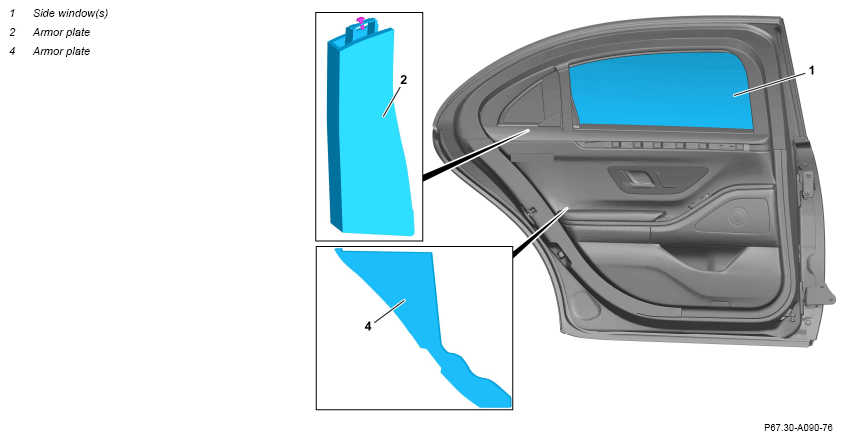

2	Remove cover over armor plate (2).	Long wedge	Fig 1
3	Remove adhesive residue at rear door and clean bonding surface.
4	Pull window guide seals out of rail (3) and press to side.
5	Unscrew screws and remove rail (3).
6	Remove armor plate (4).
7	Remove additional support for securing side window (1)
8	Release collet and carefully lower side window (1).	Two helpers required.
9	Remove armor plate (2).
10	Remove side window (1) from rear door (5).	Aid of helper required.
	Install
11	Replace rear door window guide seal.	Only bond window guide seal in area of rail (3) after installation of side window (1).	AR72.12-P-0004SG
12	Insert side window (1) into rear door (5).	Aid of helper required.
13	Install armor plate (2).	Screw, guard plate to rear door	*BA72.12-P-1009-01U
14	Insert side window (1) into window guide seals and raise fully.	Two helpers required.
15	Secure side window (1) using collet against falling down.	Two helpers required.
		Clamping pliers	Fig 2
16	Additionally secure side window (1) from underneath against falling down using suitable support.
17	Install armor plate (4).
18	Insert rail (3) and screw in screws.
19	Install new cover over armor plate (2).
20.1	Install corresponding window lifter at rear door.	Model 223 with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) Model 223 with code Z07 (B7 armoring on special protection version) with code Z14 (Right rear power window with special protection)	AR67.39-P-0012SG
20.2	Install corresponding bracket of side window (1) at rear door.	Model 223 with code Z07 (B7 armoring on special protection version) except code Z13 (Left rear power window with special protection) except code Z14 (Right rear power window with special protection)	AR67.39-P-0015SG

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clamping Pliers (220 589 04 31 00)

Courtesy of MERCEDES-BENZ USA
